GRAZE X™

Linear grazer fixture with precise beam control. Graze with low glare in a small form factor.



Features & Benefits:
  • Crisp optical performance with 10º, 30º, and 60º beam angles
  • Patented optics technology for low glare
  • Built to Order up to 96 inches.
  • Daisy chain fixtures for longer runs
  • Rotating aiming bracket or flat mounting clip
Specification Sheet (CCT) Specification Sheet (RGBW) Installation Guide IES Files CAD Files
• Up to 12 Year Limited Warranty
(See Specification Sheet for more detailed information)
• Patented optics technology for low glare



SKU Builder



SKU Builder

MakeVoltageModelBeamSeriesCCTLengthColorMountingLouverDrivers
VIP24VGRZXGR10 (10°)
GR30 (30°)
GR60 (60°)		300
500
800
1000		24 (2400K)
27 (2700K)
30 (3000K)
35 (3500K)
50 (5000K)
63 (6300K)		Example:
12in (6-96in)		AL (Aluminum)
WH (White)
BL (Black)		MC (Mounting Clip)
AIM (Aiming Bracket)		FLT (Flat)
ANG (Angled)		ODX (OmniDrive X)
SWX (Switchex)
VLM (VLM)
LUT (Lutron Hi-Lume)
Make   VIP
Voltage   24V
Model   GRZX
Beam   GR10 (10°)
   GR30 (30°)
   GR60 (60°)
Series   300
   500
   800
   1000
CCT   24 (2400K)
   27 (2700K)
   30 (3000K)
   35 (3500K)
   50 (5000K)
   63 (6300K)
Length    Example: 12in (6-96in. max)
Color   AL (Aluminum)
   WH (White)
   BL (Black)
Mounting   MC (Mounting Clip)
   AIM (Aiming Bracket)
Louver   FLT (Flat)
   ANG (Angled)
Drivers   ODX (OmniDrive X)
   SWX (Switchex)
   VLM (VLM)
   LUT (Lutron Hi-Lume)

Learn about voltage drop

Grazing Techniques

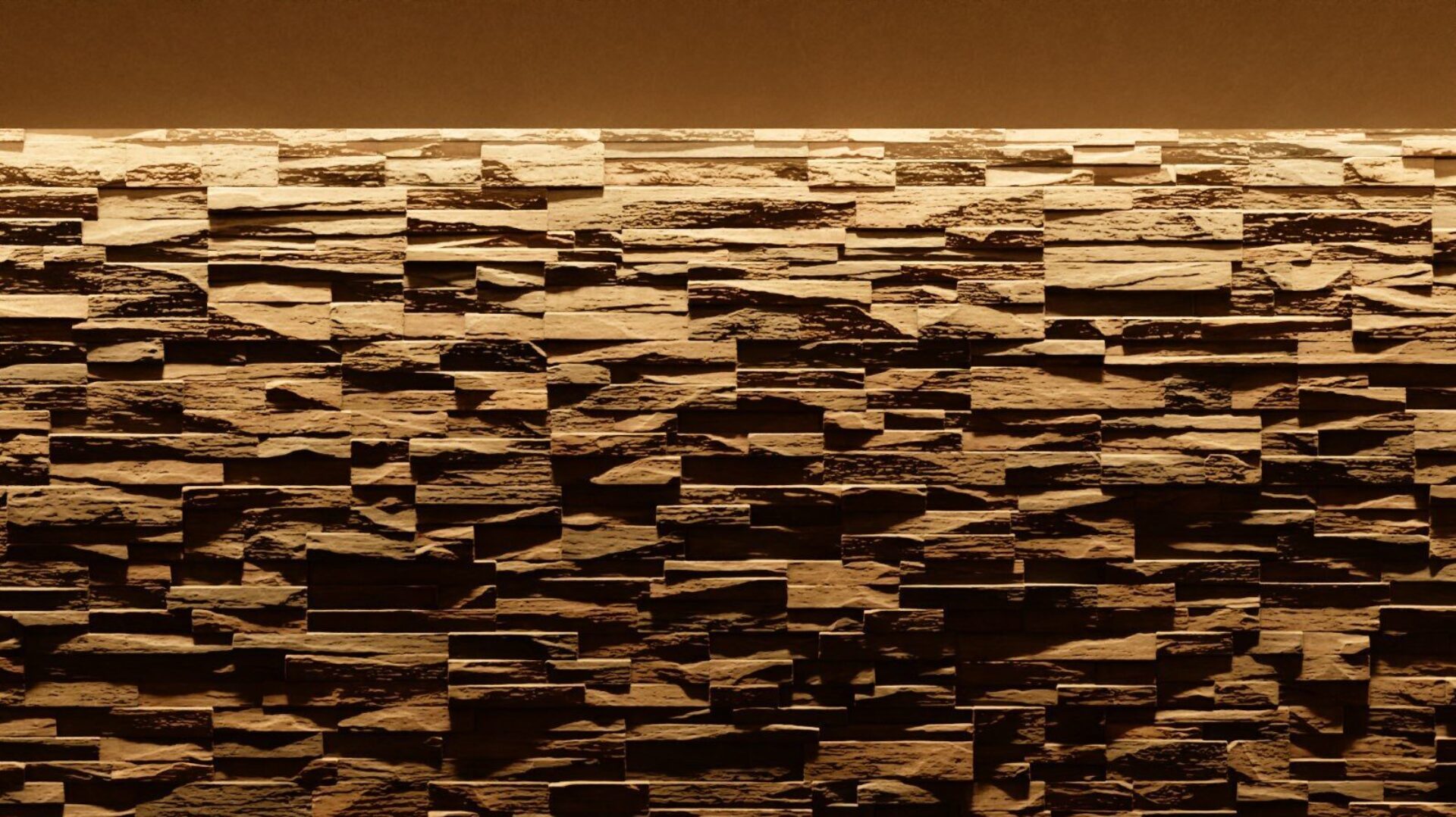

10º Beam Angle
- Grazing
30º Beam Angle
- Semi Grazing

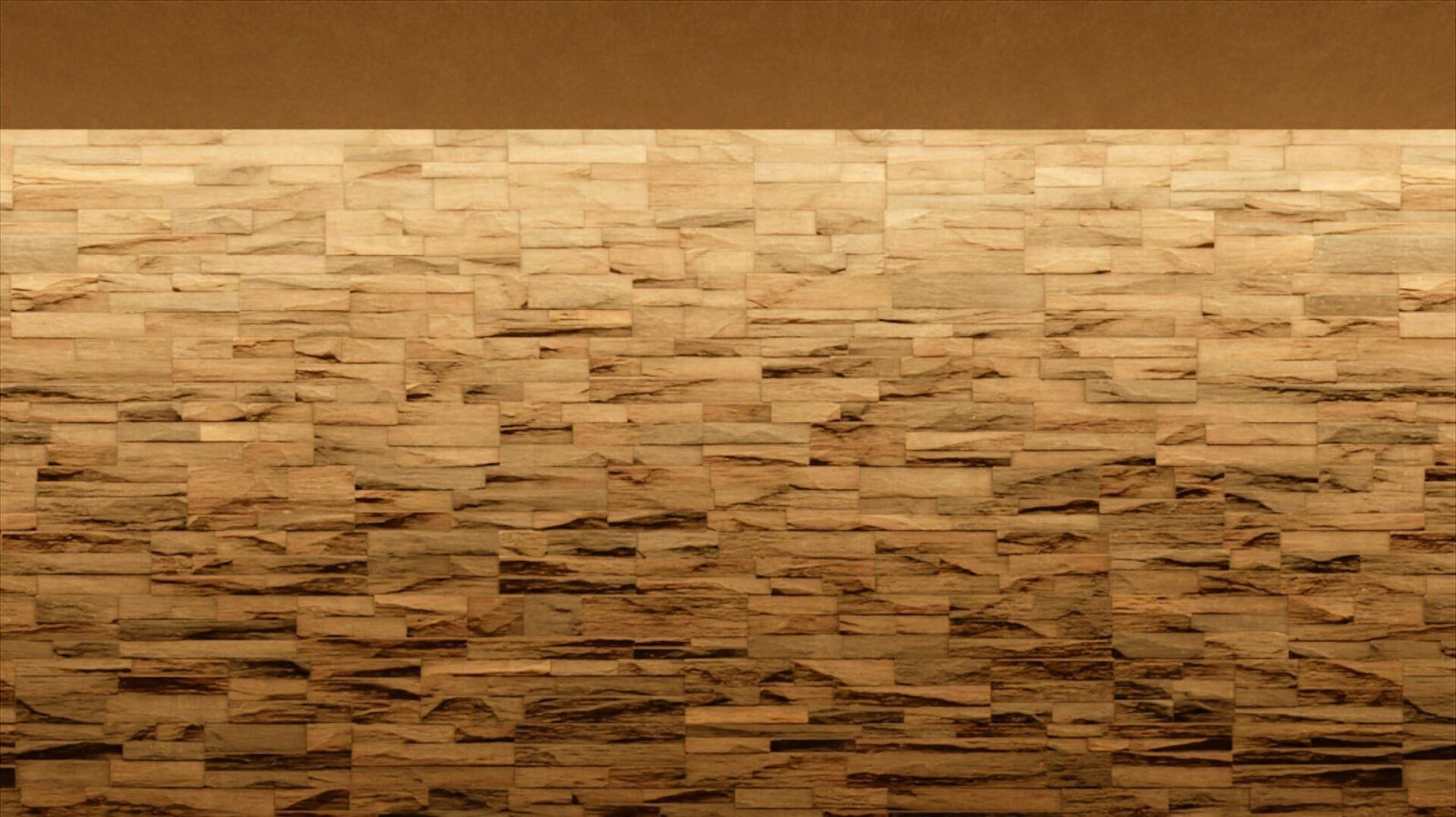

60º Beam Angle
- Wash

Mounting Accessories

• Aiming Bracket
• Mounting Clip

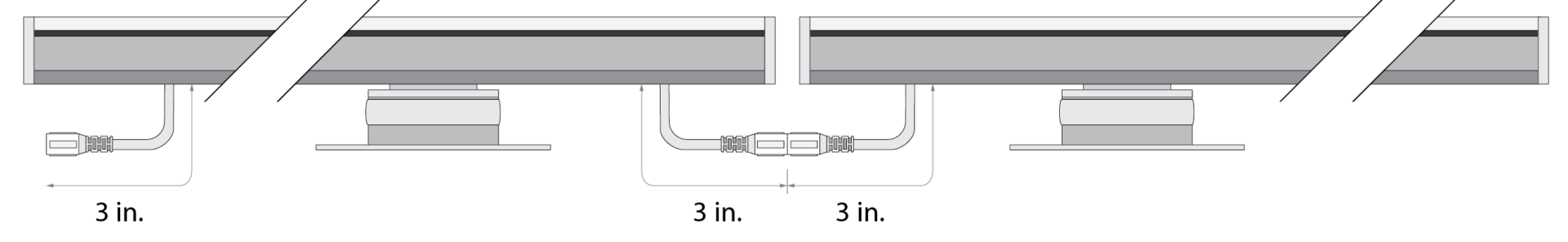

Daisy Chain Options



GRAZE X™ can be built to daisy chain together for longer runs.

Grazing & Washing



A precise linear grazing fixture can enliven textured surfaces, projecting a narrow beam of light without creating any visual glare.
