FARO™ SQUARE

A robust fixture for any indoor and outdoor application.

Features and Benefits
  • Minimal profile
  • Assembled in the USA
  • Multiple output options
  • Four lens options
  • Dry or Wet Location options
  • Closet Rated
  • IK11 rated impact protection
Spec Sheet Wet Location Spec Sheet IES Files
• 98 & 95: 12 Year Limited Warranty
• 90: 5 Year Limited Warranty
• Assembled in the USA
• Closet Rated



SKU Builder



SKU Builder

Dry Location
MakeProductFixture
Finish		RatingPerformanceW/Ft.CCTLensFixture LengthExact/
Optimal		Input Wire LengthInput WireOutput Wire LengthOutput WireMounting
           Color/TypeInputConnection Color/TypeOutputConnection
VIPFARO-SQUAREWH
(White)

BL
(Black)

AL
(Aluminum)		DRY
(Indoor / Damp Location)		98
CRI: 98+
R9: 95+
Fidelity: 103
Gamut: 95		1.8
3.3
5.4
7.5
9.5		20
22
24
27
30
35
42
50
63

FR
(Frosted)

FRT
(Arch Frosted)

CLT
(Arch Clear)

BL
(Black)

Example:
12in		O
(Optimal - Default)

E
(Exact)		96
(96 in. - Default)		AW
(White CL2 - Default)

AB
(Black CL2)

AS
(Silver Plenum - Bare Lead Only)

A
(Straight - Default)

B1
(Side A)

B2
(Side B)

C
(Bottom)

1
(Bare Wire - Default)

2
(Barrel)

3
(Interconnect)		blank*
(No Wire - Default)		blank*
(No Wire - Default)

BW
(White CL2)

BB
(Black CL2)

BS
(Silver Plenum - Bare Lead Only)

blank*
(No Wire - Default)

A
(Straight)

B1
(Straight)

B2
(Straight)

C
(Bottom)

*blank*
(No Wire - Default)

1
(Bare Wire)

2
(Barrel)

3
(Interconnect)

HNG
(Hanging Hardware)

MC
(Mounting Clip)

RC
(Rotating Clip)

VC
(Vertical Clip)

95
CRI: 95+
R9: 90+
Fidelity: 103
Gamut: 95		1
1.9
2.8
4.6
7.2		20
22
24
27
30
35
40
50
63
90
CRI: 90
R9: 55+
Fidelity: 99
Gamut: 88
BAA & BABA Compliant		3.3
5		24
27
30
35
40
50
Dry Location:
Make   VIP
Product   FARO-SQUARE

Fixture Finish

   WH (White)
   BL (Black)
   AL (Aluminum)
Rating   DRY (Indoor / Damp Location)


W/ft.

CCT

Performance

98

CRI: 98+
R9: 95+
Fidelity: 103
Gamut: 95

1.8
3.3
5.4
7.5
9.5

20
22
24
27
30
35
42
50
63

95

CRI: 95+
R9: 90+
Fidelity: 103
Gamut: 95

1
1.9
2.8
4.6
7.2

20
22
24
27
30
35
40
50
63


90

CRI: 90
R9: 55+
Fidelity: 99
Gamut: 88
BAA & BABA
Compliant

3.3
5

24
27
30
35
40
50

Lens   FR (Frosted)
   FRT (Arch Frosted)
   CLT (Arch Clear)
   BL (Black)

Fixture Length

    Example: 12in

Exact/ Optimal

    O (Optimal - Default)
    E (Exact)

Input Wire Length

    96 (96 in. - Default)

Input Wire

Color/Type

    AW (White CL2 - Default)
    AB (Black CL2)
    AS (Silver Plenum - Bare Lead Only)

Input

    A (Straight - Default)
    B1 (Side A)
    B2 (Side B)
    C (Bottom)

Connection

    1 (Bare Wire - Default)
    2 (Barrel)
    3 (Interconnect)

Output Wire Length

    *blank (No Wire - Default)

Output Wire

Color/Type

    blank* (No Wire - Default)
    BW (White CL2)
    BB (Black CL2)
    BS (Silver Plenum - Bare Lead Only)

Output

    blank* (No Wire - Default)
    A (Straight)
    B1 (Side A)
    B2 (Side B)
    C (Bottom)

Connection

    blank* (No Wire - Default)
    1 (Bare Wire - Default)
    2 (Barrel)
    3 (Interconnect)
MountingHNG (Hanging Hardware)
MC (Mounting Clip)
RC (Rotating Clip)
VC (Vertical Clip)



Wet Location
MakeProductFixture
Finish		RatingPerformanceW/Ft.CCTLensFixture LengthExact/
Optimal		Input Wire LengthInput WireOutput Wire LengthOutput WireMounting
           Color/TypeInputConnection Color/TypeOutputConnection
VIPFARO-SQUAREWH
(White)

BL
(Black)

AL
(Aluminum)		WET
(Outdoor / Wet Location)		SS
CRI: 95+
R9: 90+
Fidelity: 103
Gamut: 95		1.8
4.6		24
27
30
35
40		FR
(Frosted)		Example:
12in		O
(Optimal - Default)

E
(Exact)		96
(96 in. - Default)		AW
(White CL2 - Default)

AB
(Black CL2)		A
(Straight - Default)		1
(Bare Wire - Default)
 		blank*
(No Wire - Default)		blank*
(No Wire - Default)

BW
(White CL2)

BB
(Black CL2)		blank*
(No Wire - Default)

A
(Straight)
 		blank*
(No Wire - Default)

1
(Bare Wire)

HNG (Hanging Hardware)

MC (Mounting Clip)

RC (Rotating Clip)

VC (Vertical Clip)

WET Location:
Make   VIP
Product   FARO-SQUARE

Fixture Finish

   WH (White)
   BL (Black)
   AL (Aluminum)
Rating   WET (Outdoor / Wet Location)


W/ft.

CCT

Performance



    SS

CRI: 95+
R9: 90+
Fidelity: 103
Gamut: 95

1.8
4.6

24
27
30
35
40

Lens   FR (Frosted)

Fixture Length

    Example: 12in

Exact/ Optimal

    O (Optimal - Default)
    E (Exact)

Input Wire Length

    96 (96 in. - Default)

Input Wire

Color/Type

    AW (White CL2 - Default)
    AB (Black CL2)

Input

    A (Straight - Default)

Connection

    1 (Bare Wire - Default)

Output Wire Length

    *blank (No Wire - Default)

Output Wire

Color/Type

    blank* (No Wire - Default)
    BW (White CL2)
    BB (Black CL2)

Output

    blank* (No Wire - Default)
    A (Straight)

Connection

    blank* (No Wire - Default)
    1 (Bare Wire - Default)
MountingHNG (Hanging Hardware)
MC (Mounting Clip)
RC (Rotating Clip)

VC (Vertical Clip)



Learn about voltage drop

Mounting Accessories

• Mounting Clip

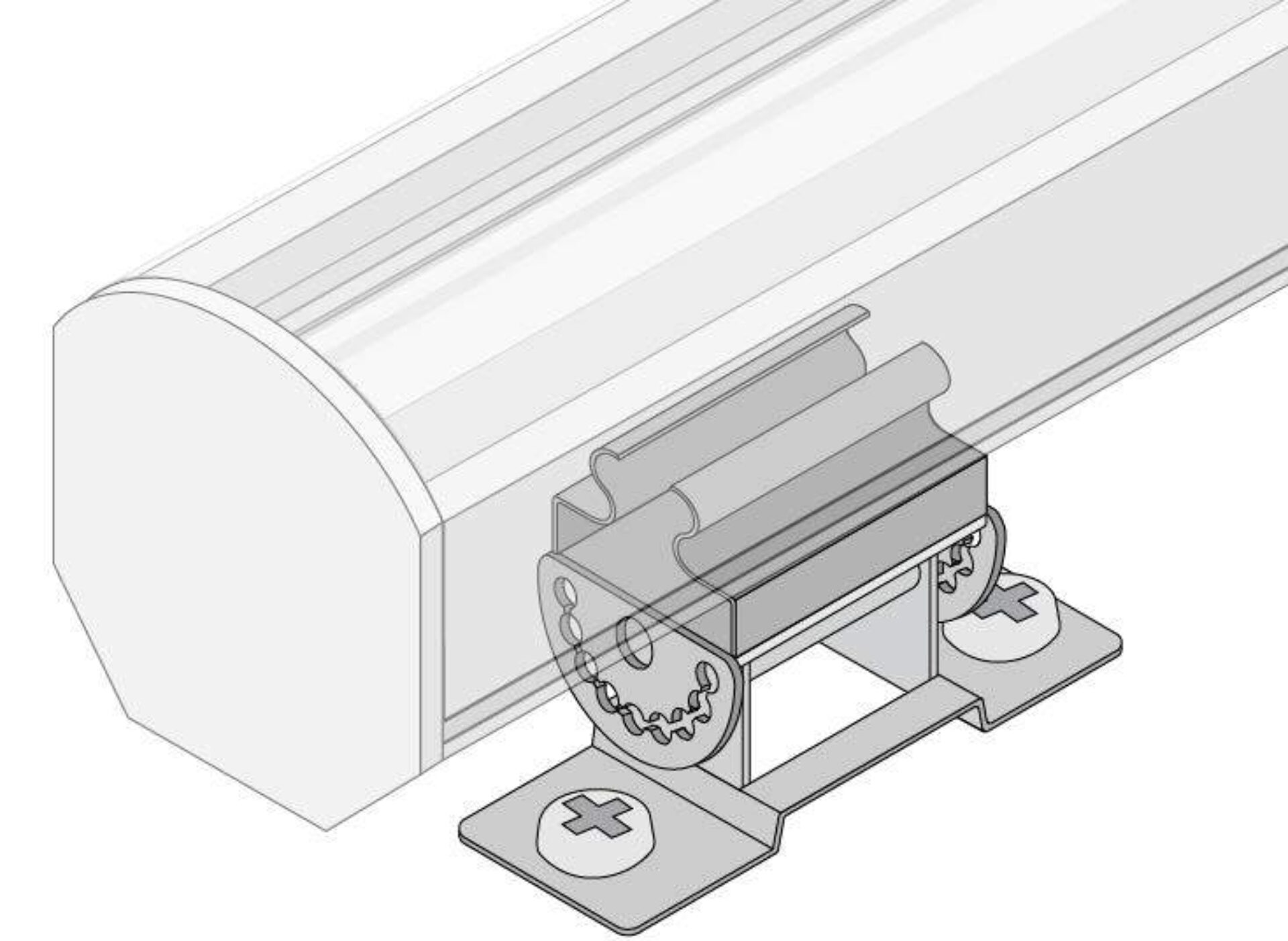

• Rotating Bracket

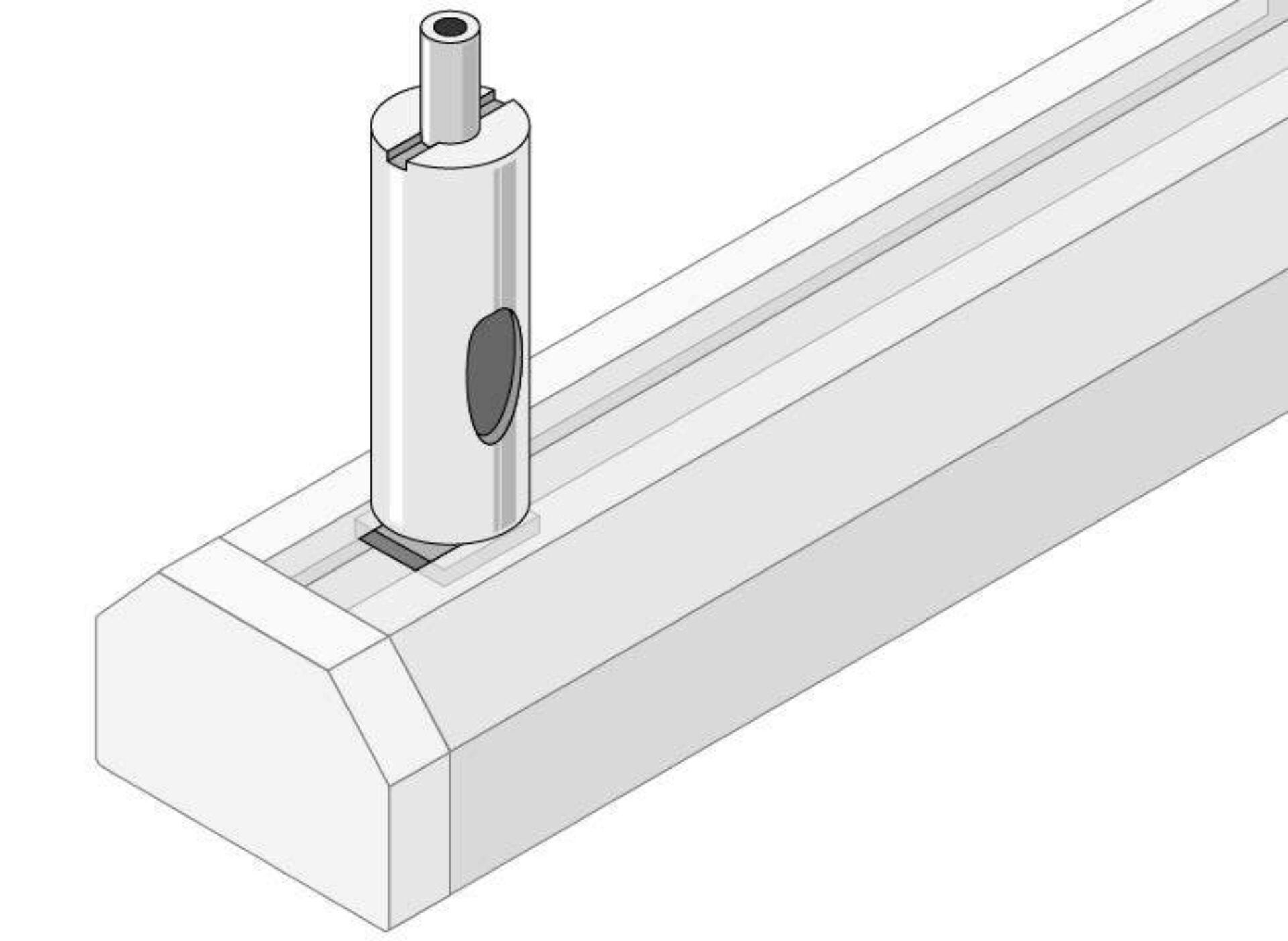

• Hanging Mount

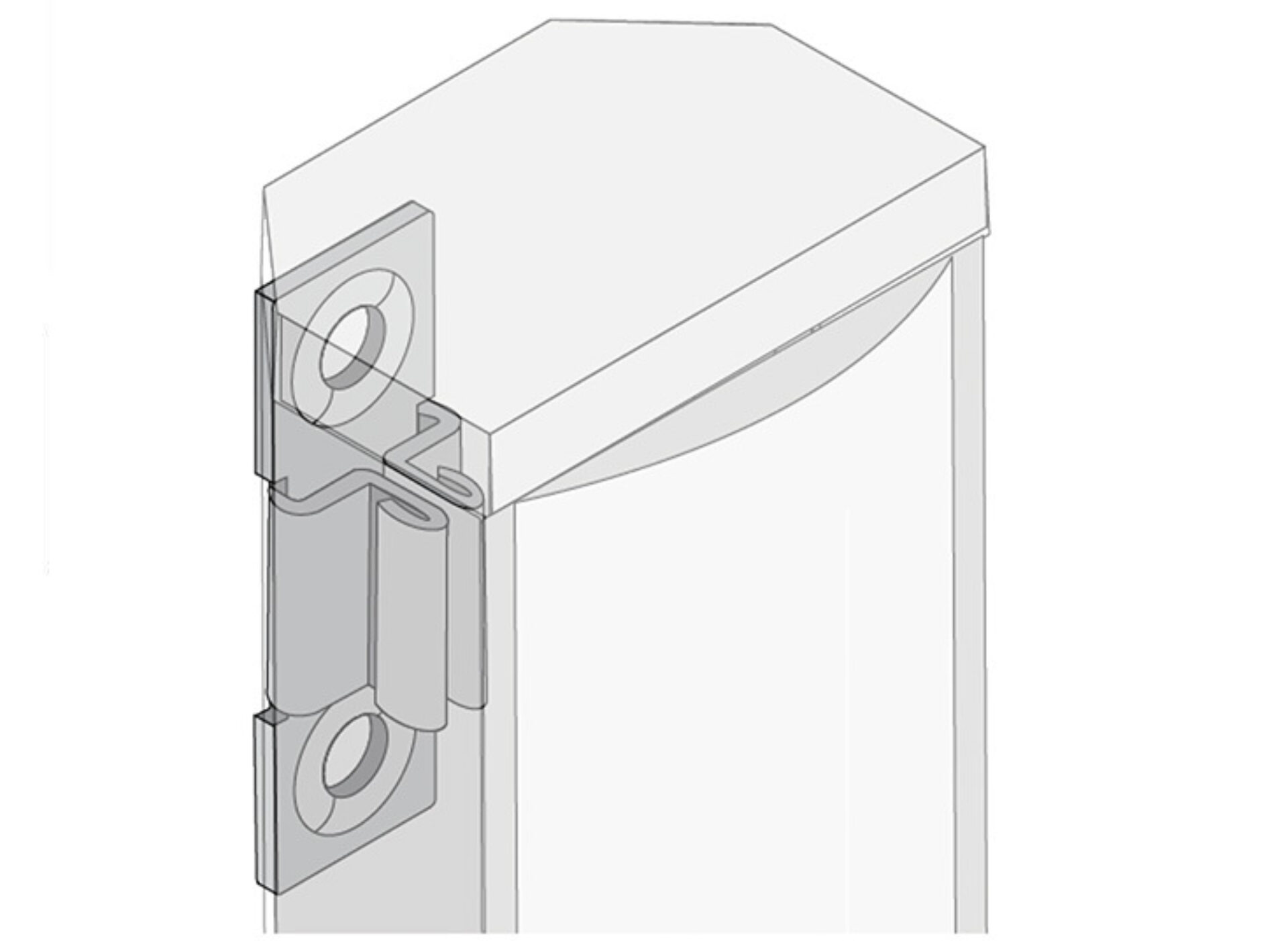

• Vertical Mount
