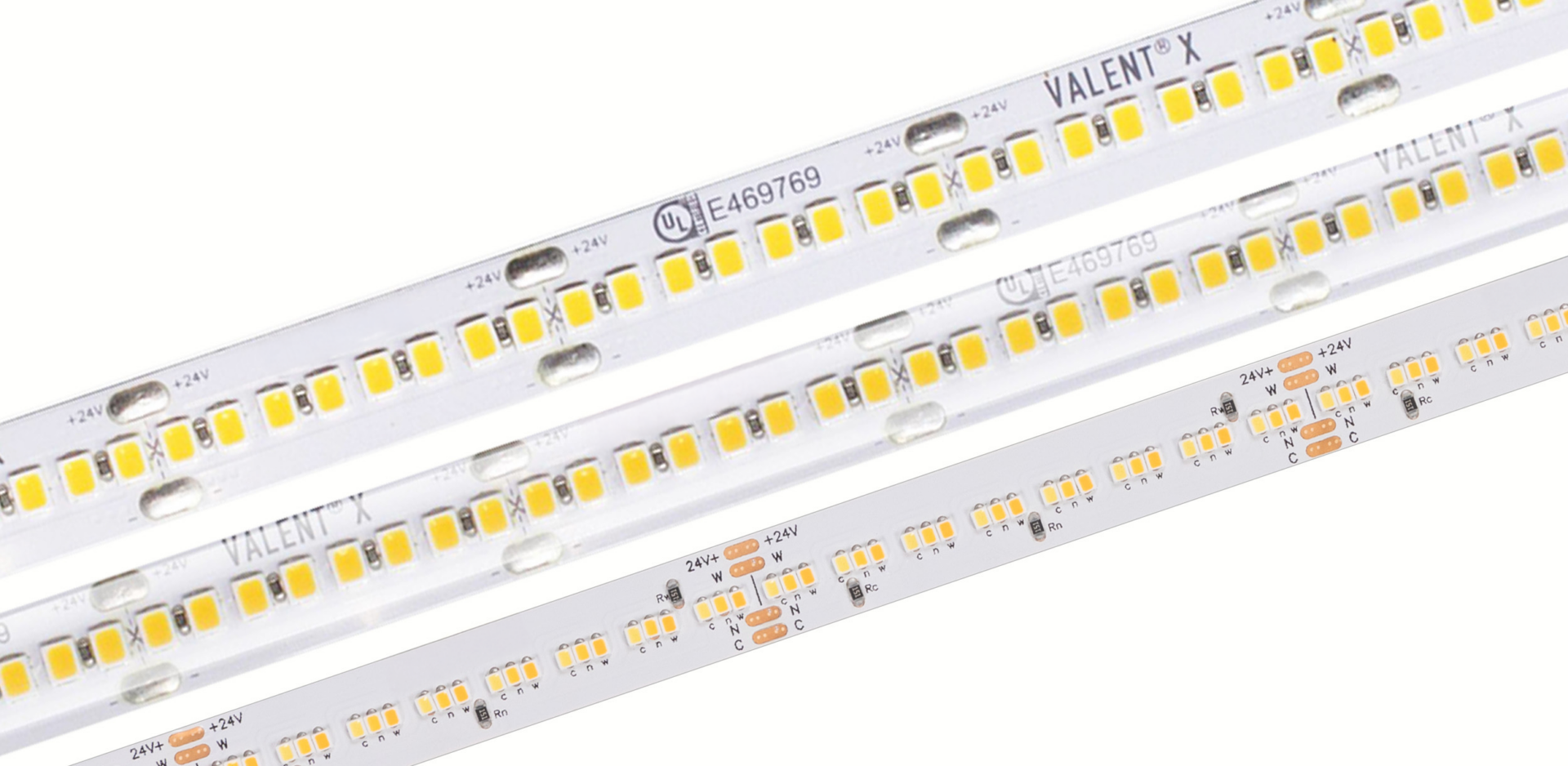

VALENT® X Family



Precision-engineered, high density tape light for demanding applications. Up to 800+ lumens per foot with 95+ CRI / 90+ R9. 12 Year Warranty.


Features and Benefits
  • Dense LED placement for uninterrupted linear light
  • 100, 200, 300, 500, and 800 lumen outputs
  • 95+ CRI: Superior color rendering
  • New and improved, field cuttable design
  • 90+ R9 values color rendering

VALENT® X Overview



VALENT® X Overview

ProductMax Lumens/ftWatts/ftMax Run (ft.)EnvironmentFactory AssemblyField: AssemblyField: TrimField: Connector
VALENT® X 100100+1.080IP20 or IP65●●●●
VALENT® X 200200+1.953IP20 or IP65●●●●
VALENT® X 300300+2.841IP20 or IP65●●●●
VALENT® X 500500+4.630IP20 or IP65●●●●
VALENT® X 800800+7.219IP20 or IP65●●●●
VALENT® X Tunable WhiteSee Spec Sheet4.616.4IP20●●●
VALENT® X 100
Max Lumens/ft100+
Watts/ft1.0
Max Run (ft.)80
Profile Size (in.)IP20 or IP65
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector●



VALENT® X 200
Max Lumens/ft200+
Watts/ft1.9
Max Run (ft.)53
Profile Size (in.)IP20 or IP65
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector●



VALENT® X 300
Max Lumens/ft300+
Watts/ft2.8
Max Run (ft.)41
Profile Size (in.)IP20 or IP65
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector●



VALENT® X 500
Max Lumens/ft500+
Watts/ft4.6
Max Run (ft.)30
Profile Size (in.)IP20 or IP65
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector●

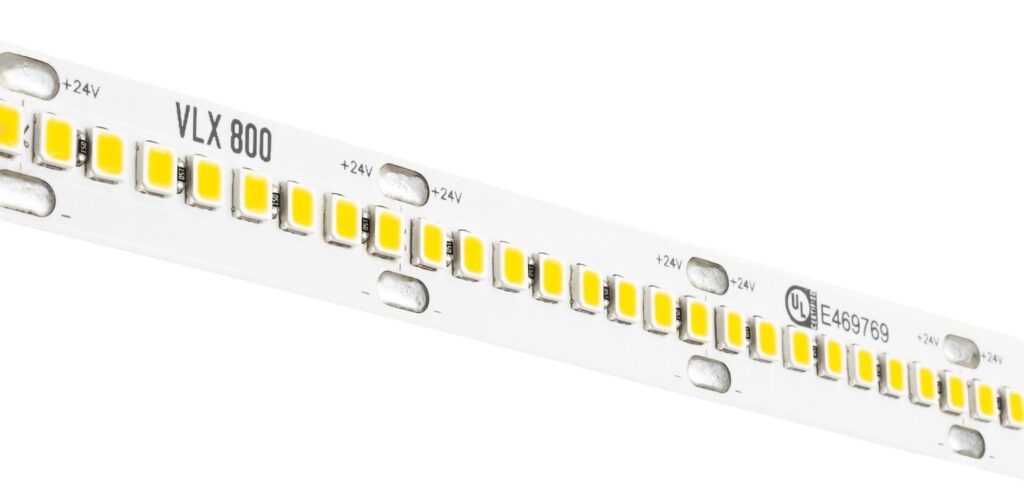

VALENT® X 800
Max Lumens/ft800+
Watts/ft7.2
Max Run (ft.)19
Profile Size (in.)IP20 or IP65
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector●



VALENT® X Tunable White
Max Lumens/ftSee Spec Sheet
Watts/ft4.6
Max Run (ft.)16.4
Profile Size (in.)IP20
Factory Assembly●
Field: Assembly●
Field: Trim●
Field: Connector



Product
Description
Features & Benefits
Products

VALENT® X Tape Light
Spec Sheet Installation Guide IES Files

Precision-engineered, high density tape light for demanding applications. Up to 800+ lumens per foot with 95+ CRI / 90+ R9.

  • 12 Year Limited Warranty
  • Dense LED placement for uninterrupted linear light
  • 100, 200, 300 and 500+ lumen outputs
  • 95+ CRI: Superior color rendering
  • New and improved, field cuttable design

  • 90+ R9 values color rendering

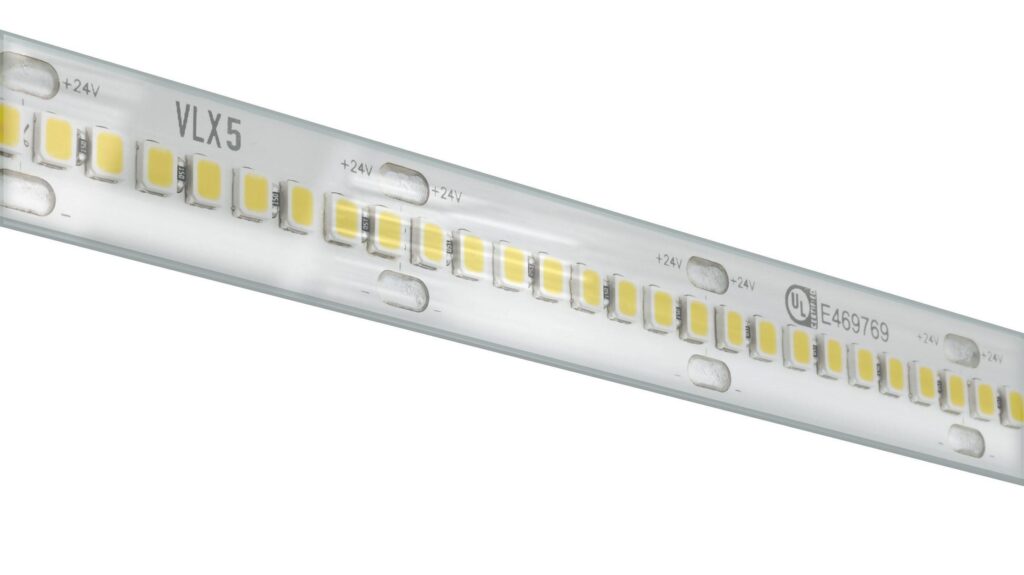

VALENT® X Wet Location Tape Light
Spec Sheet Installation Guide LM79 IES


Precision-engineered, high density tape light for wet locations (IP65). Up to 500+ lumens per foot with 95+ CRI / 90+ R9.


  • 12 Year Limited Warranty
  • Dense LED placement for uninterrupted linear light
  • 500 lumen outputs
  • 95+ CRI: Superior color rendering
  • New and improved, field cuttable design
  • High R9–R13 values
  • Ultra high lumen output

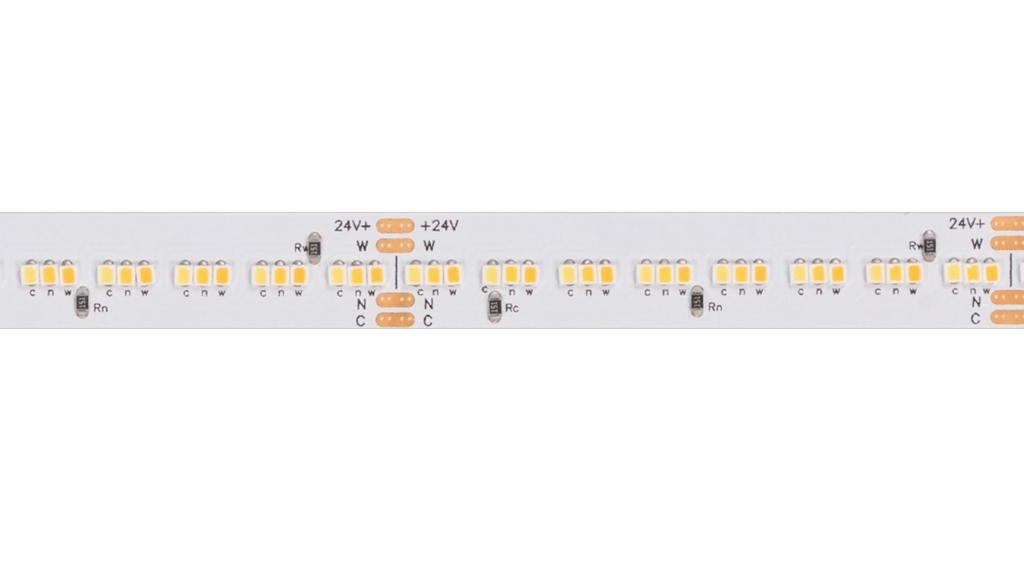

VALENT® X Tunable White Tape Light
Spec Sheet Installation guide


Flexible, high-density tape light offering three CCT options spanning from 1800K to 3500K to 6500K, with a 95+ CRI. Ensures accurate representation across the white light spectrum, optimizing the circadian rhythm experience without compromising color gamut or fidelity.


  • 12 Year Limited Warranty
  • A single light source with three-CCT tunable white (1800K, 3500K, 6500K)
  • 95+ CRI
  • Up to 450+ Lm/ft.

  • 16.4 ft. Max. Run
