LINAIRE® Flex Side Bend



Side-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 80+ lumens per foot.


Features and Benefits
  • Side-bending for curved architectural details
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Long maximum run lengths
  • Factory assembly (IP67)
  • Field cuttable, free-cut assembly (IP65)
Spec Sheet Installation Guide IES Files LM-79 Report Field Assembly Video
• 5 Year Limited Warranty
• Factory assembly (IP67)
• Field cuttable, free-cut termination (IP65)



SKU Builder



SKU Builder

MakeVoltageSeriesModelCCTRun LengthWire EntryMountingDriver
VIP24VSELIN24 (2400K)
27 (2700K)
30 (3000K)
35 (3500K)
40 (4000K)		32 (32ft. spool)STE (Straight Wire Entry)
SDE (Side Wire Entry)
BE (Bottom Wire Entry)		3M (3M Adhesive)
MC (Mounting Clip)
MTCH (Mounting Channel)
SPINE (Spine Channel)		ELV (Electronic)
VLM (Constant Voltage)
MAG (MLV)
010 (0-10V)
LUT (Lutron)
O/O (On /Off)
SWX (Switchex)
PoE (Power over Ethernet)
Make   VIP
Voltage   24V
Model   SE
Series   LIN
CCT   24 (2400K)
   27 (2700K)
   30 (3000K)
   35 (3500K)
   40 (4000K)
Run Length   32 (32ft spool)
Wire Entry   STE (Straight Wire Entry)
   SDE (Side Wire Entry)
   BE (Bottom Wire Entry)
Mounting   3M (3M Adhesive)
   MC (Mounting Clip)
   MTCH (Mounting Channel)
   SPINE (Spine Channel)
Driver   ELV (Electronic)
   VLM (Constant Voltage)
   MAG (MLV)
   010 (0-10V)
   LUT (Lutron)
   O/O (On / Off)
   SWX (Switchex)
   PoE (Power over Ethernet)

Learn about voltage drop

Mounting Accessories

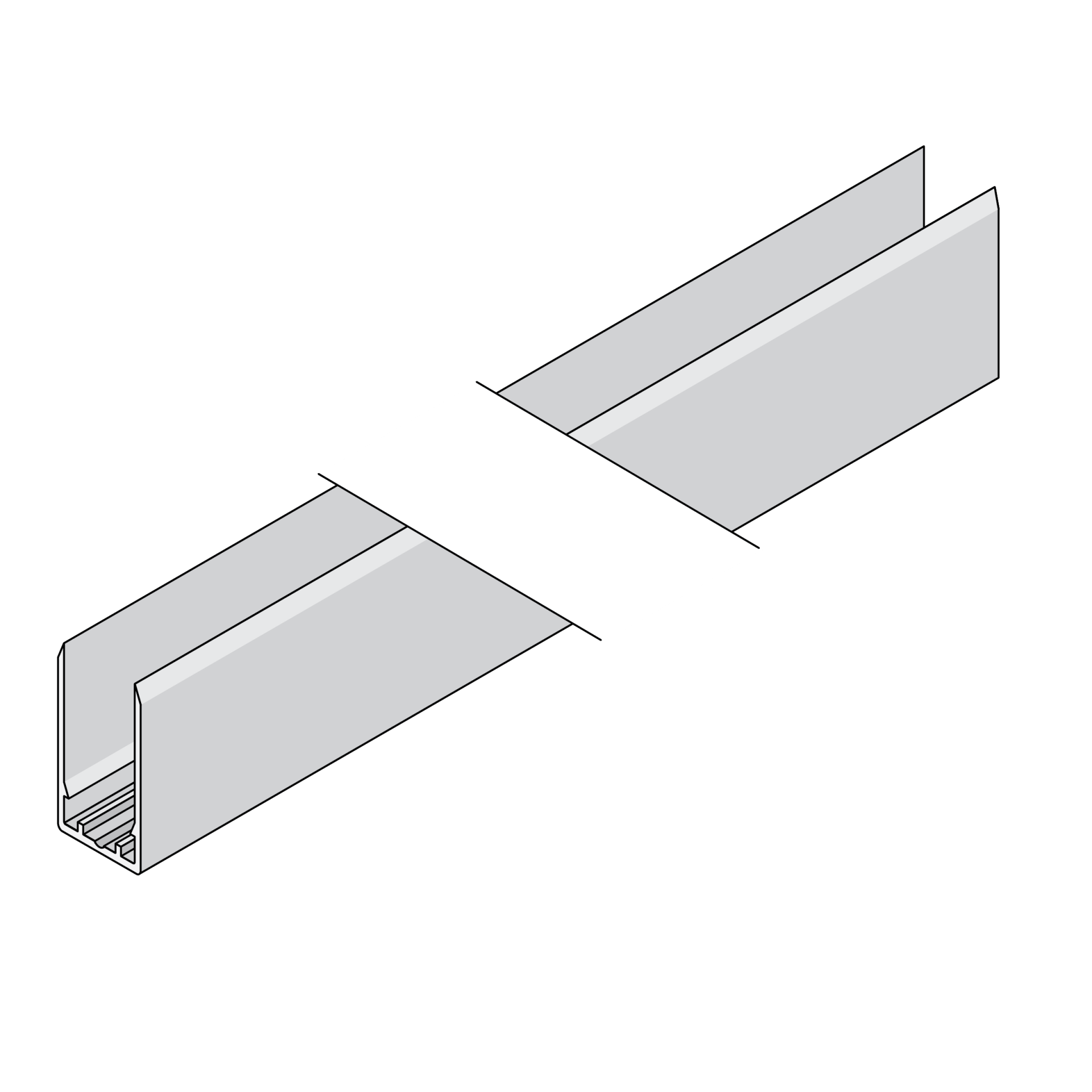

• Straight Mounting Channel

    DI-LIN-SE-MTCH-39

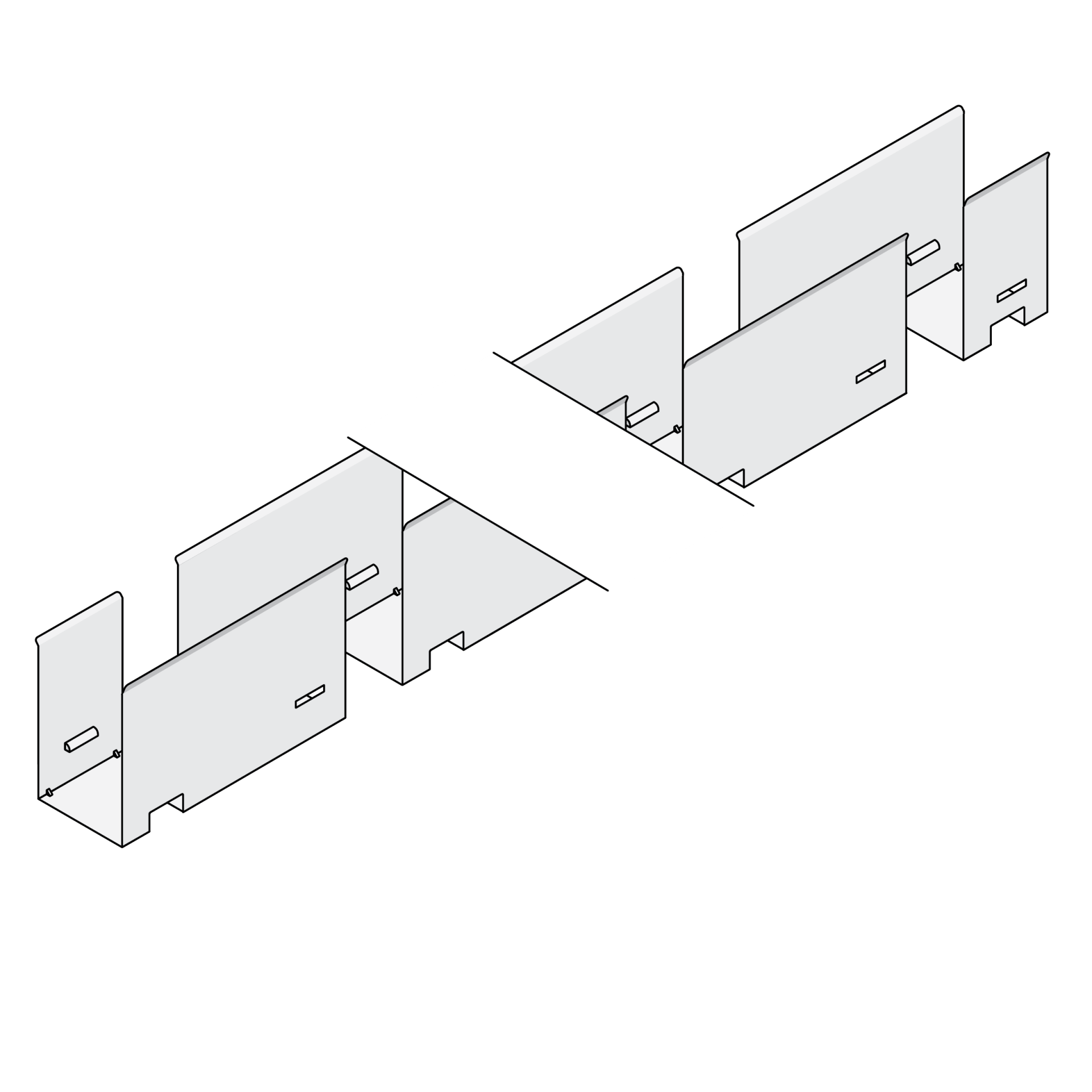

• Spine Mounting Channel

    DI-LIN-SE-SPINE-39 (39" piece, white)

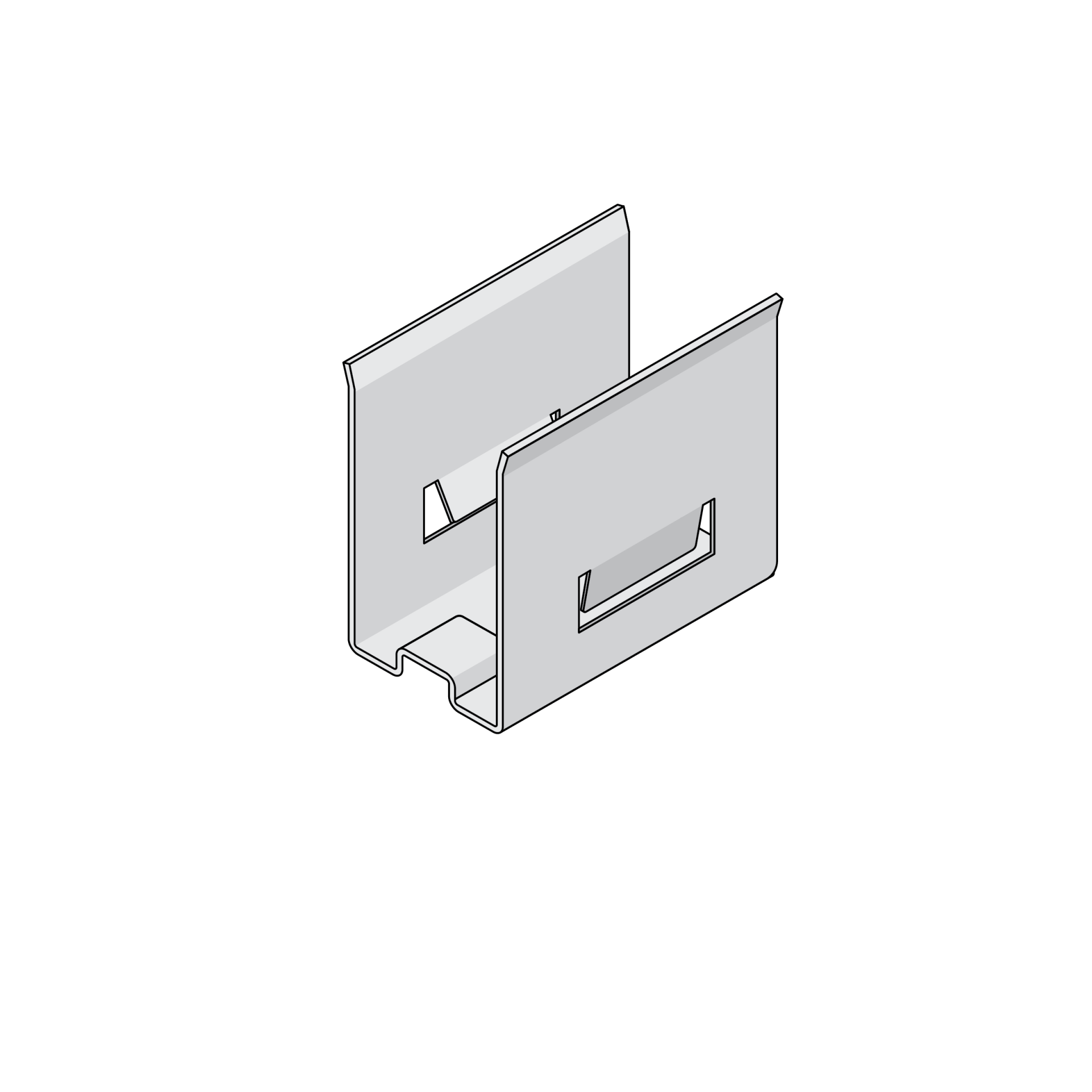

• Mounting clip

    DI-LIN-SE-MTCL-2 (2-pack, white)

Factory Assembly
Wire Entry Options

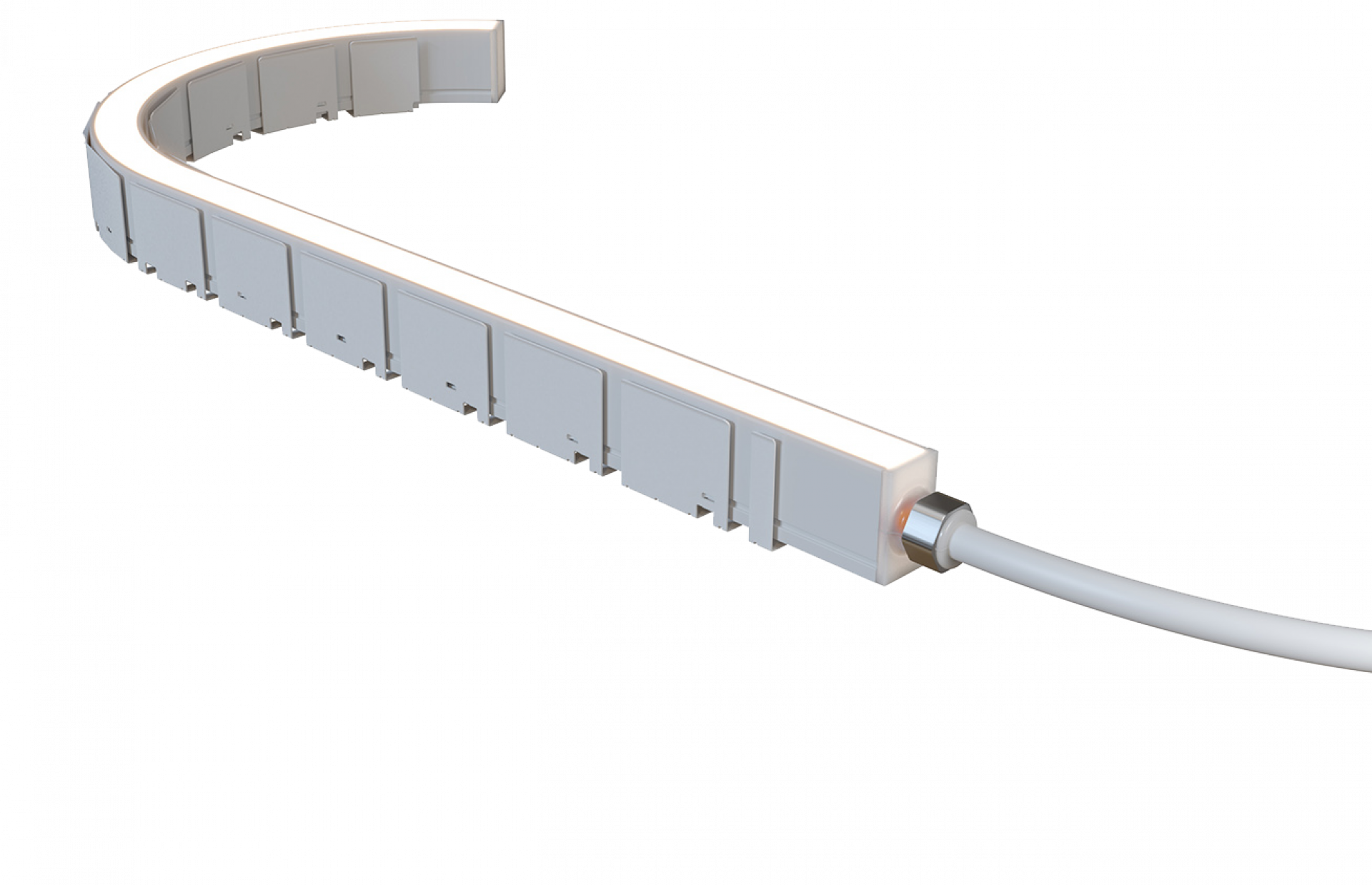

• Straight Wire Entry

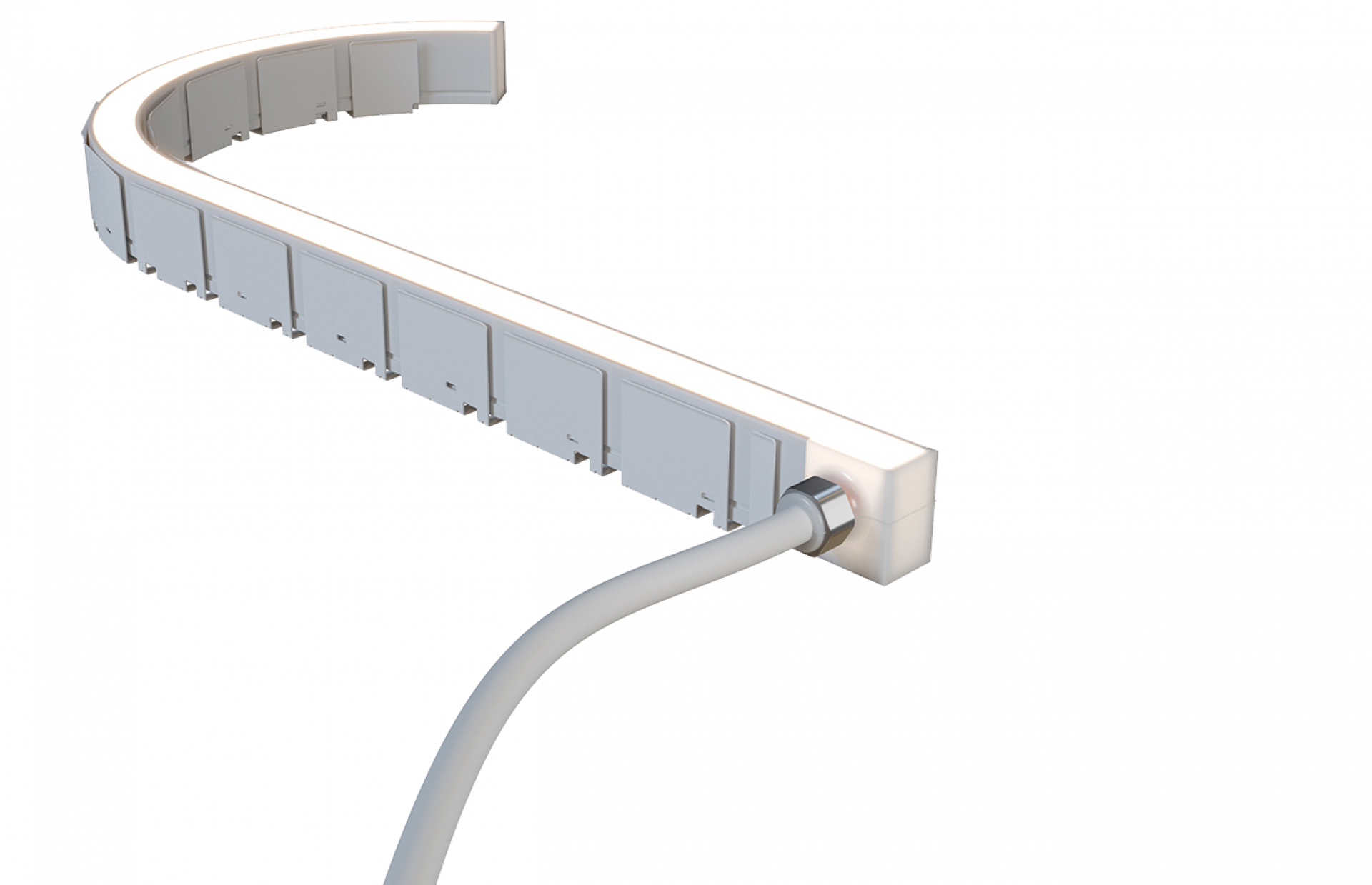

• Side Wire Entry

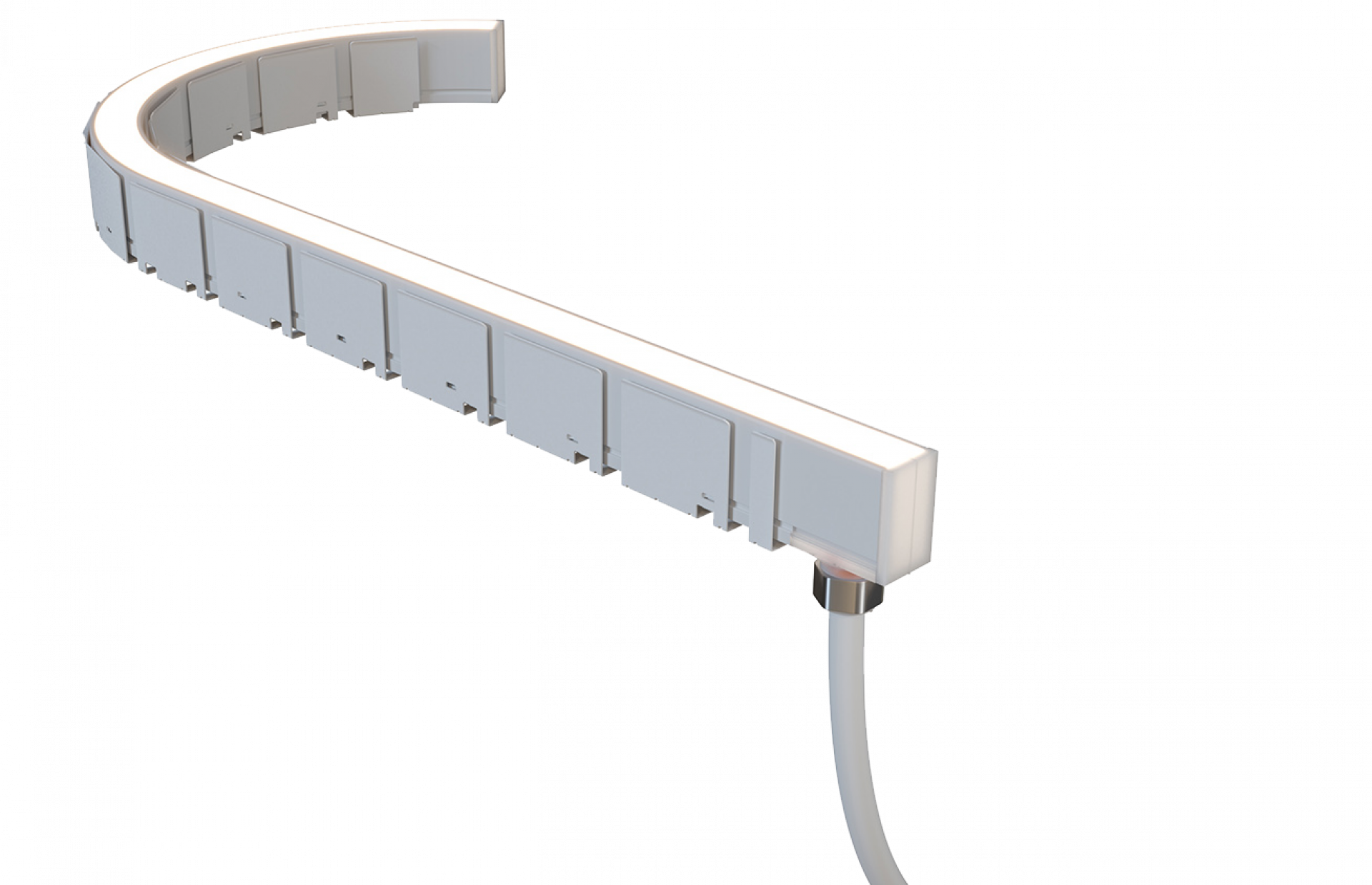

• Bottom Wire Entry

Field Assembly
Wire Entry Options & Components

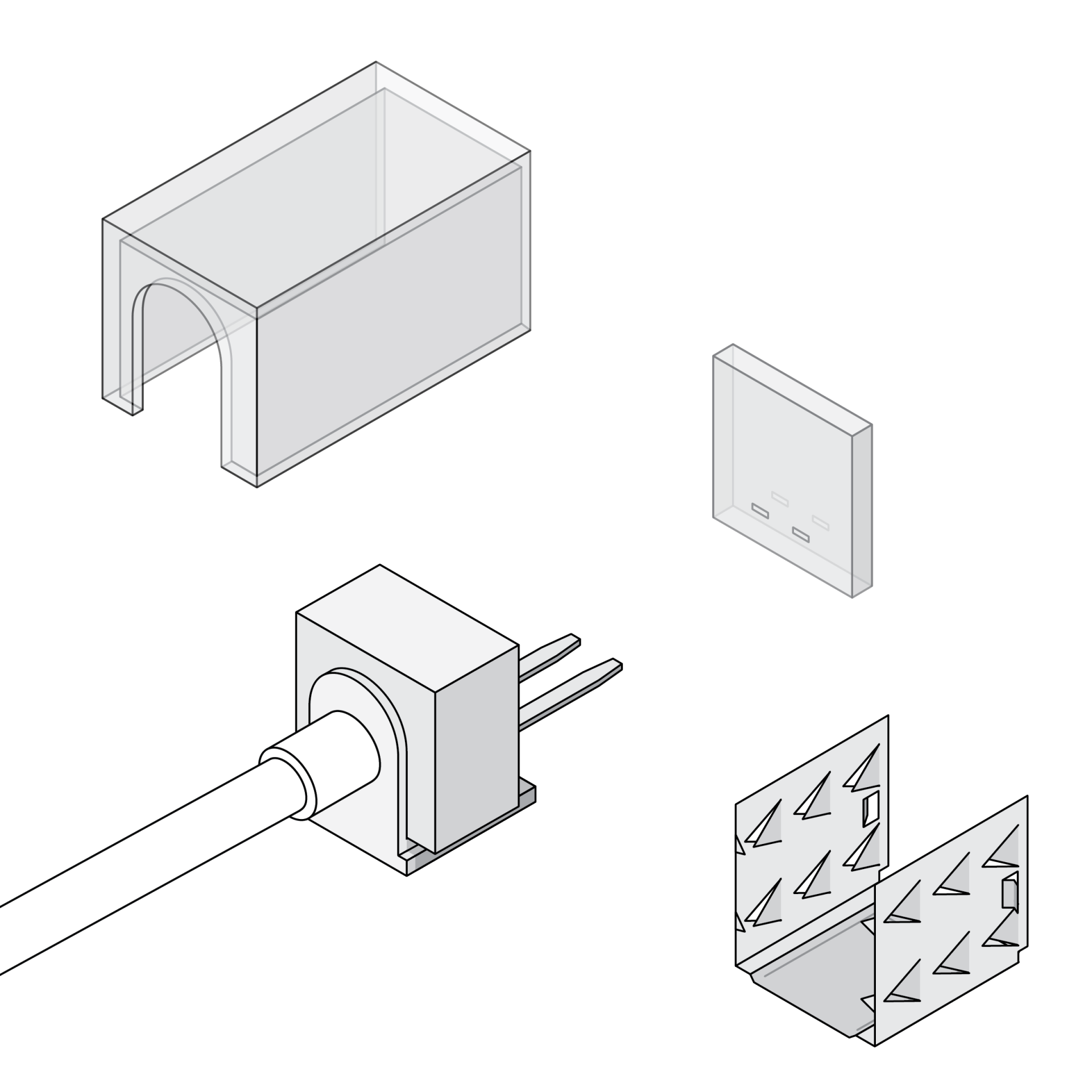

• Straight Connector

    DI-LIN-SE-STFC

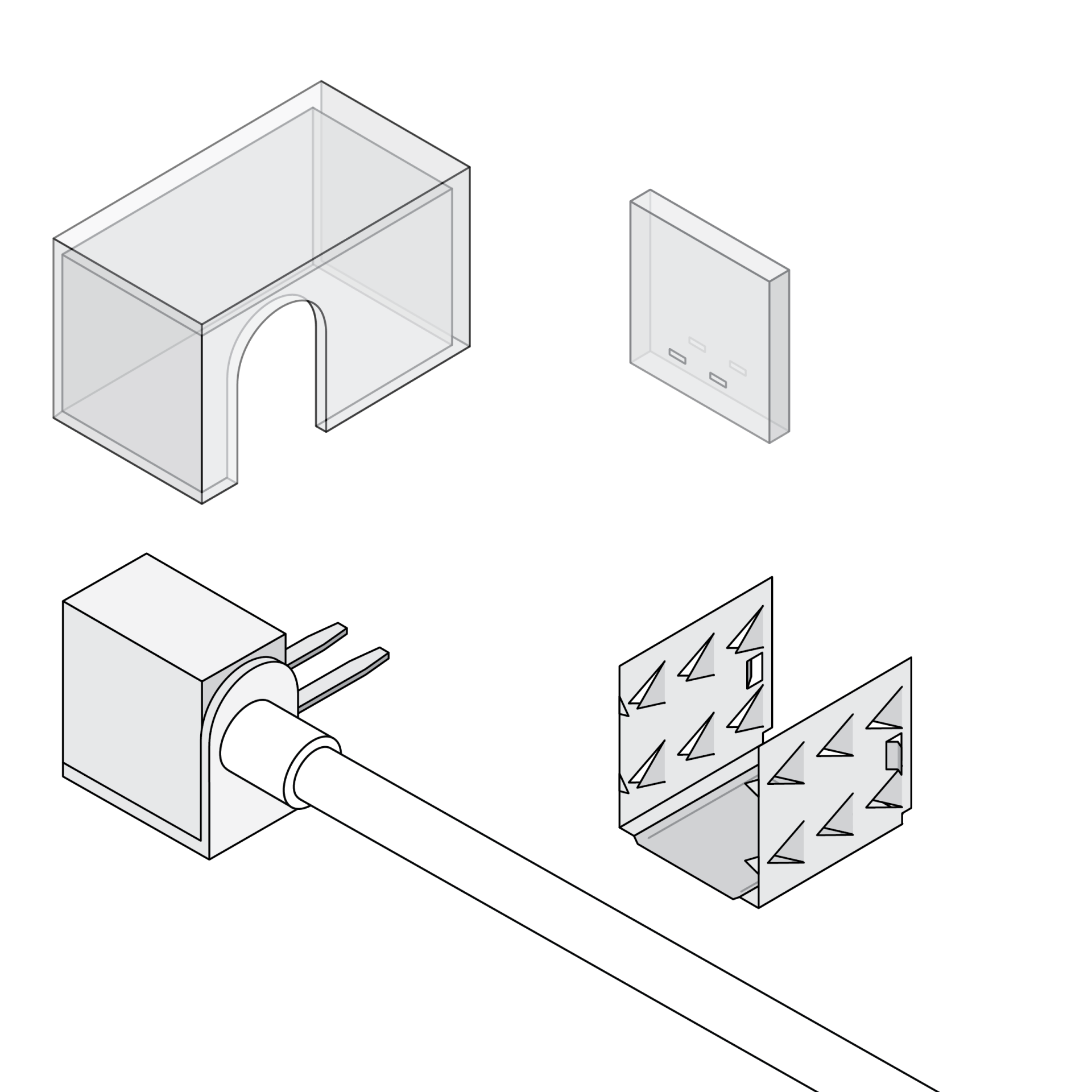

• Side Connector

    DI-LIN-SE-SDFC

• Bottom Connector

    DI-LIN-SE-BFC

• Dead End Cap

    DI-LIN-SE-DEC
