LINAIRE® Flex Micro Side Bend



Diminutive side-bending architectural light for accents, millwork, and tight spaces. Water resistant (IP65) with precision light quality and full diffusion for a dotless look.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 70+ lumens per foot.


Features & Benefits
  • Side-bending for curved architectural details
  • Very small fixture with no visible dots
  • Water resistant for indoor and outdoor use ՄIP65Յ
  • 90+ CRI
  • Factory assembly (IP65), field adjustable termination (IP65)
  • 5 Year Warranty
Spec Sheet Installation Guide IES Files LM-79 Reports
• 5 Year Limited Warranty
• Factory assembly (IP65), field adjustable termination (IP65)



SKU Builder



SKU Builder

MakeVoltageSeriesModelCCTRun LengthMountingDriver
DI24VMSELIN24 (2400K)
27 (2700K)
30 (3000K)
35 (3500K)
40 (4000K)		*custom
(custom length)

016
(16.4ft. spool)		3M (3M Adhesive)
MC (Mounting Clip)
CHN (MountingChannel)		ELV (Electronic)
VLM (Constant Voltage)
MAG (MLV)
LUT (Lutron)
O/O (On / Off)
SWX (Switchex)
PoE (Power over Ethernet)
Make   DI
Voltage   24V
Series   MSE
Model   LIN
CCT   24 (2400K)
   27 (2700K)
   30 (3000K)
   35 (3500K)
   40 (4000K)
Run Length   *custom (custom length)
   016 (16.4ft. spool)
Mounting3M (3M Adhesive)
MC (Mounting Clip)
CHN (Mounting Channel)
Driver   ELV (Electronic)
   VLM (Constant Voltage)
   MAG (MLV)
   LUT (Lutron)
   O/O (On / Off)
   SWX (Switchex)
   PoE (Power over Ethernet)

Learn about voltage drop

Mounting Accessories

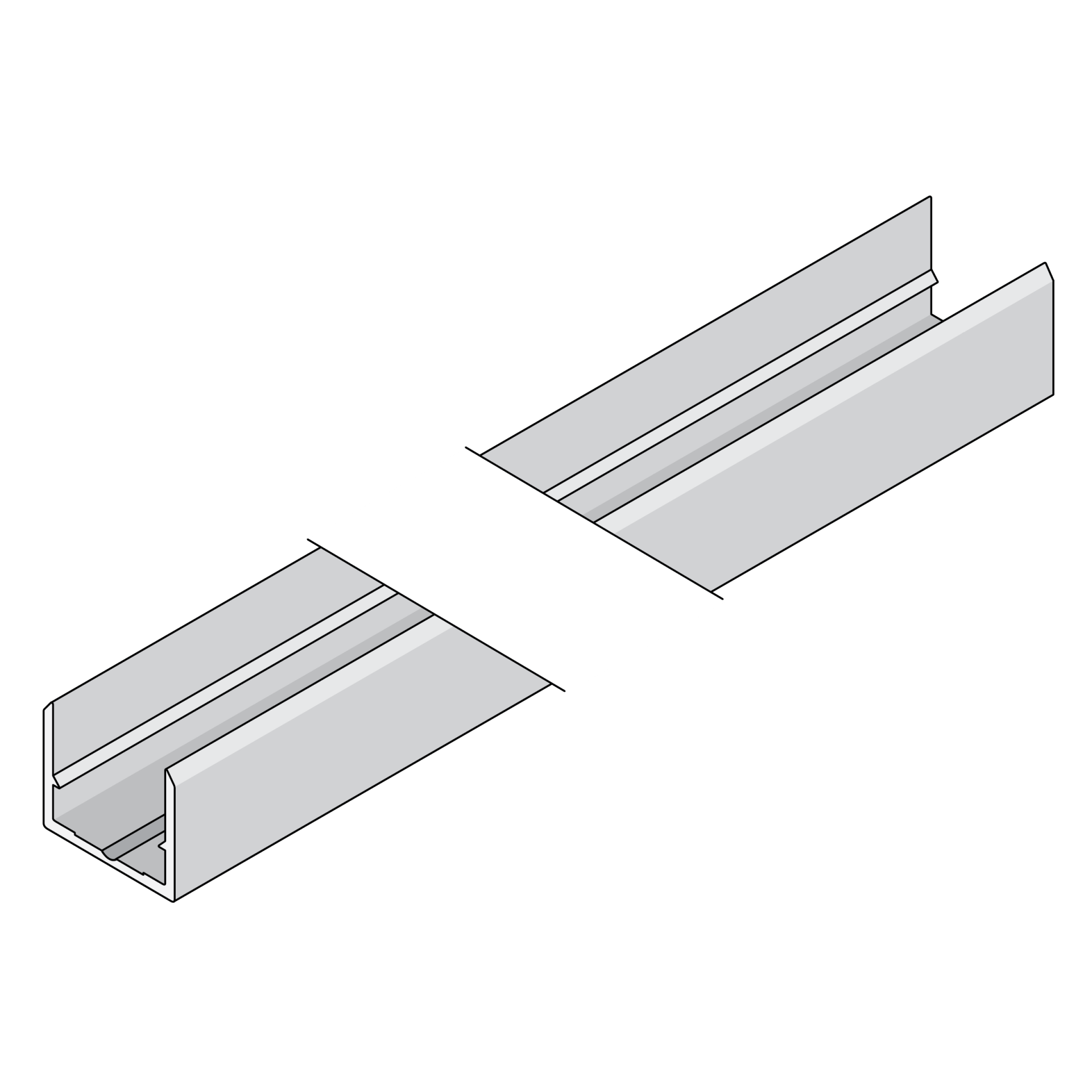

• Mounting channel

    DI-LIN-MSE-MTCH-39

• Mounting Clip

    DI-LIN-MSE-MTCL-2

Factory Assembly
Wire Entry

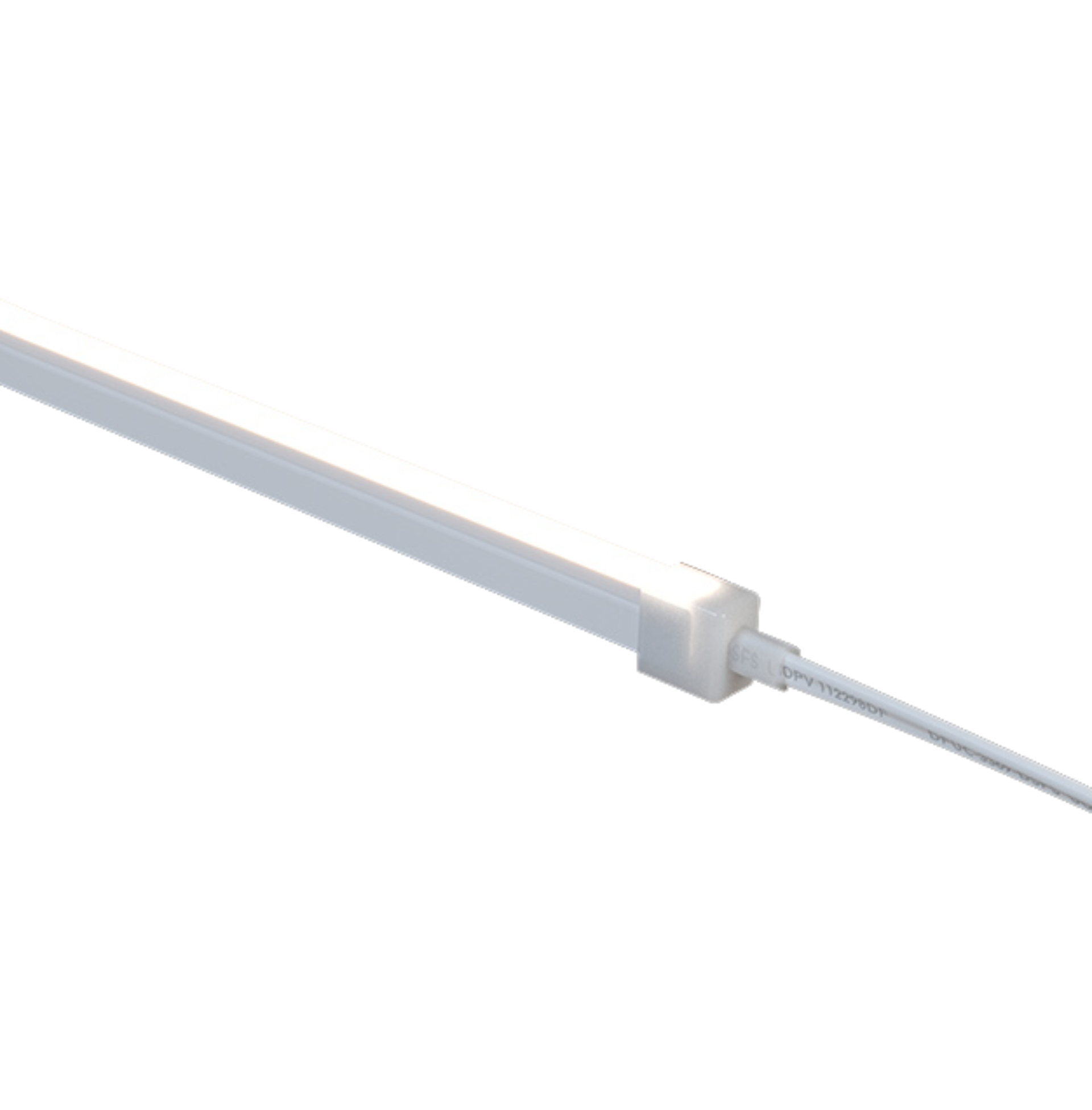

• Straight Wire Entry
