LINAIRE® Flex Top Bend



Top-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 150+ lumens per foot.


Features & Benefits
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Long maximum run lengths
  • Factory assembly (IP67)
  • Field cuttable, free-cut assembly (IP65)
Spec Sheet Installation Guide IES Files LM-79 Report Field Assembly Video
• 5 Year Limited Warranty
• Factory assembly (IP67)
• Field cuttable, free-cut termination (IP65)



SKU Builder



SKU Builder

MakeVoltageModelSeriesCCTRun LengthWire EntryChannelsFinishMountingDriver
DI24VTELIN
LIN3		24 (2400K)
27 (2700K)
30 (3000K)
35 (3500K)
40 (4000K)		016 (16ft. spool)
032 (32ft. spool)		STE (Straight Wire Entry)
SDE (Side Wire Entry)
BE (Bottom Wire Entry)		MTCH (Mounting Channel)
SPINE (Spine Channel)		AL (Aluminum)MC (Mounting Clip)
CHN (Mounting Channel)		ELV (Electronic)
VLM (Constant Voltage)
MAG (MLV)
010 (0-10V)
LUT (Lutron)
O/O (On /Off)
SWX (Switchex)
PoE (Power over Ethernet)
Make   DI
Voltage   24V
Model   TE
Series   LIN
   LIN3
CCT   24 (2400K)
   27 (2700K)
   30 (3000K)
   35 (3500K)
   40 (4000K)
Run Length   016 (16ft. spool)
   032 (32ft spool)
Wire Entry   STE (Straight Wire Entry)
   SDE (Side Wire Entry)
   BE (Bottom Wire Entry)
Channels   MTCH (Mounting Channel)
   SPINE (Spine Channel)
Finish   AL (Aluminum)
Mounting   MC (Mounting Clip)
   CHN (Mounting Channel)
Driver   ELV (Electronic)
   VLM (Constant Voltage)
   MAG (MLV)
   010 (0-10V)
   LUT (Lutron)
   O/O (On / Off)
   SWX (Switchex)
   PoE (Power over Ethernet)

Learn about voltage drop

Mounting Accessories

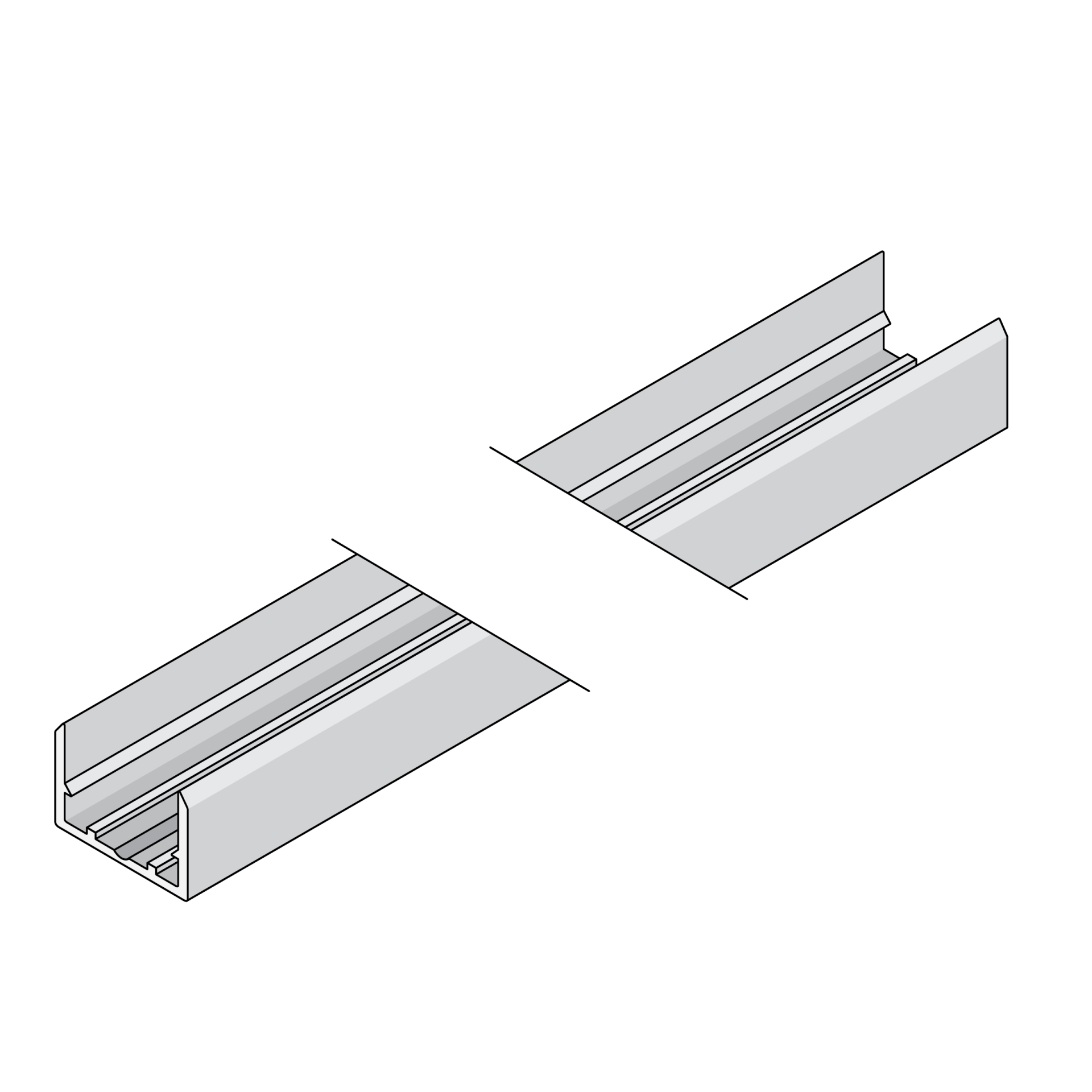

• Straight Mounting Channel

    DI-LIN-TE-MTCH-39

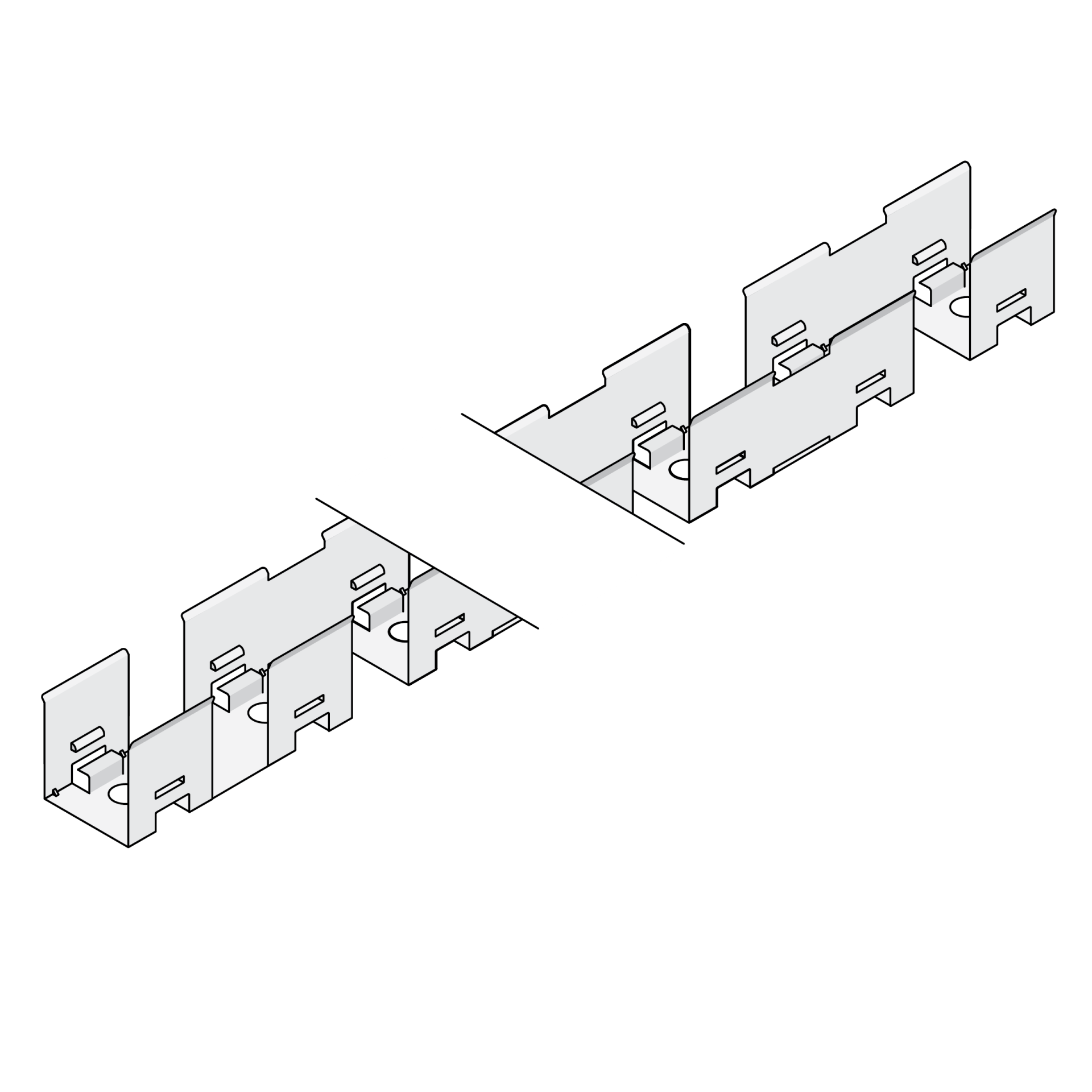

• Spine Mounting Channel

    DI-LIN-TE-SPINE-39

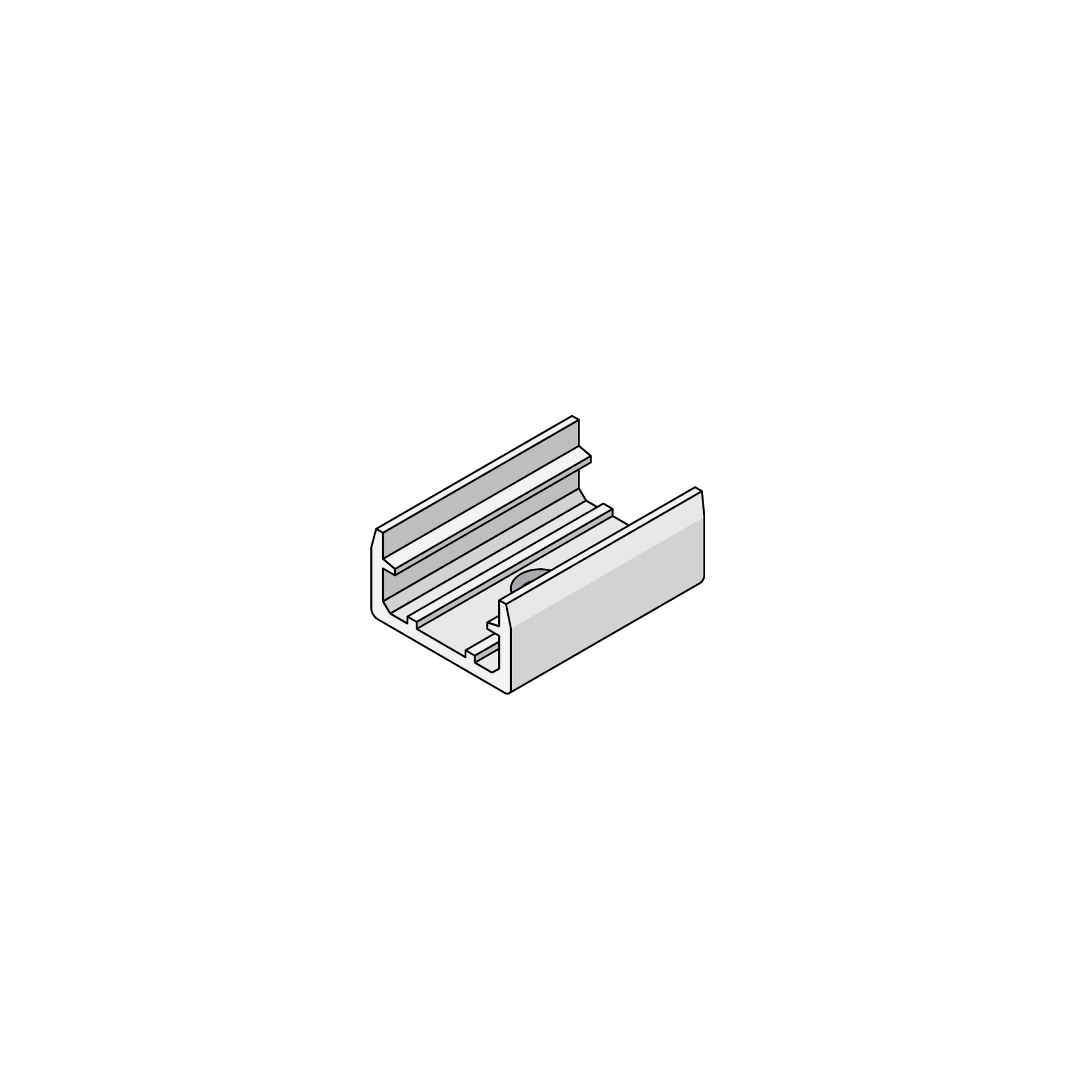

• Mounting clip

    DI-LIN-TE-MTCL-2

Factory Assembly Wire Entry Options

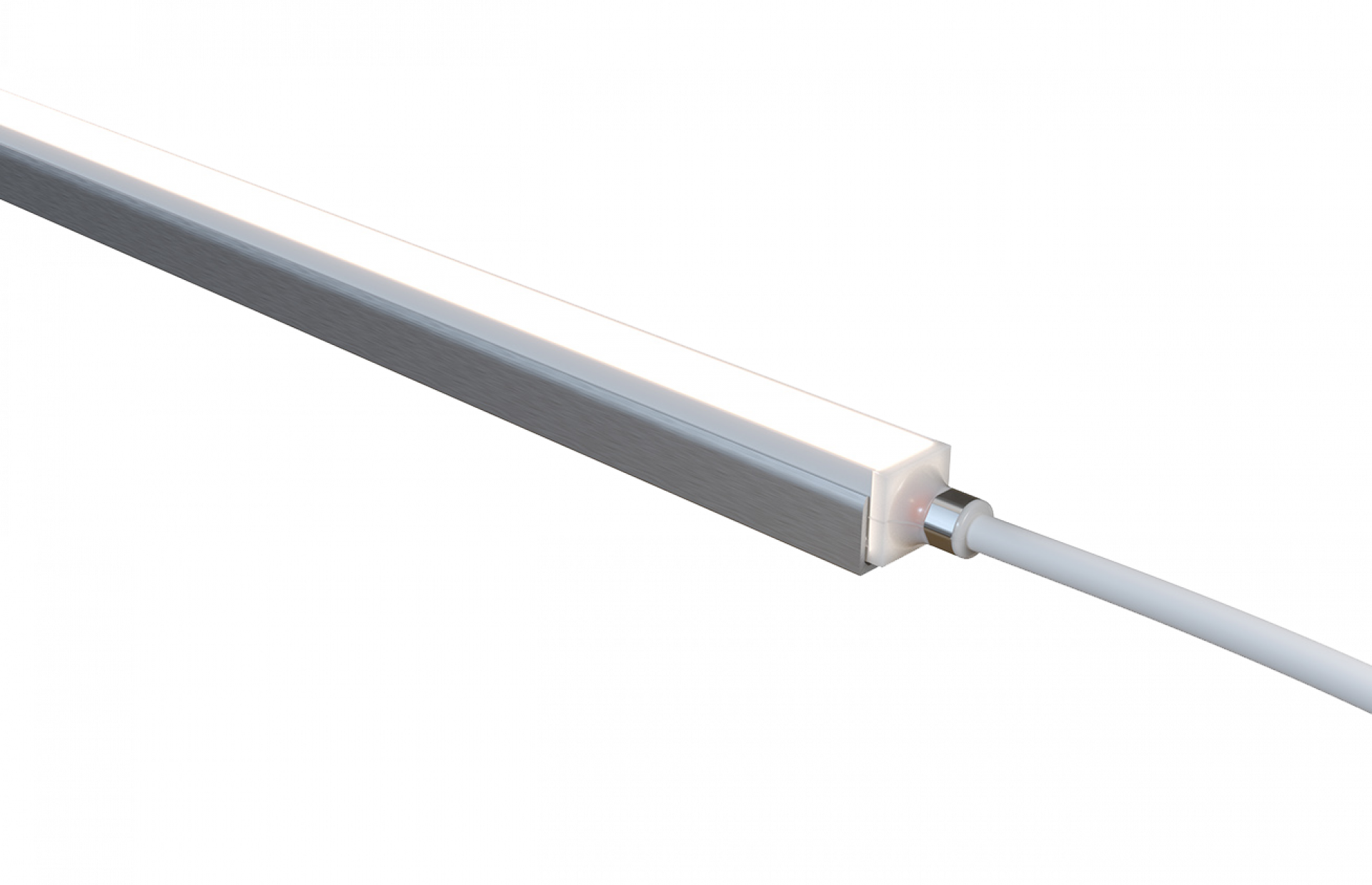

• Straight Wire Entry

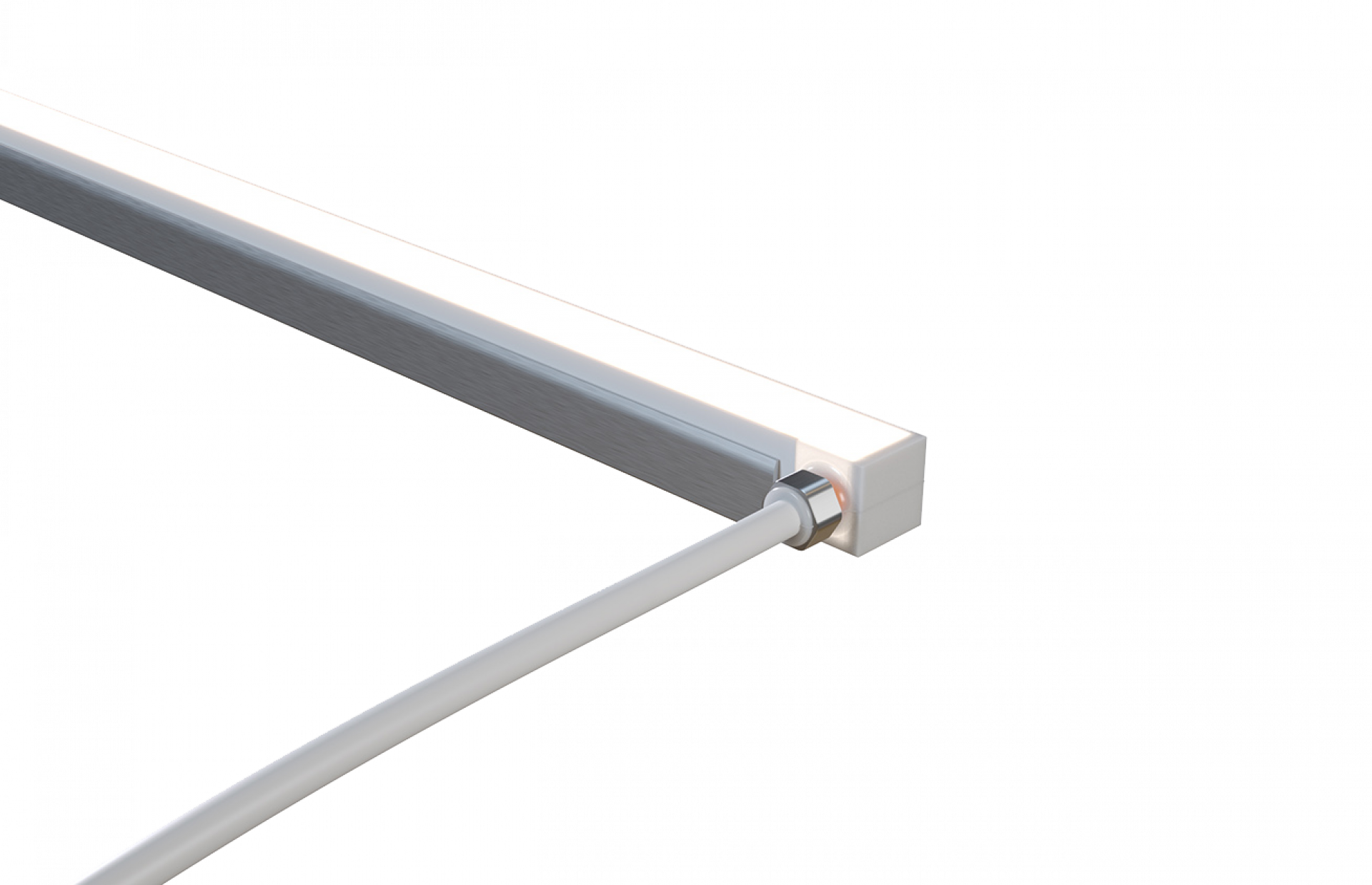

• Side Wire Entry

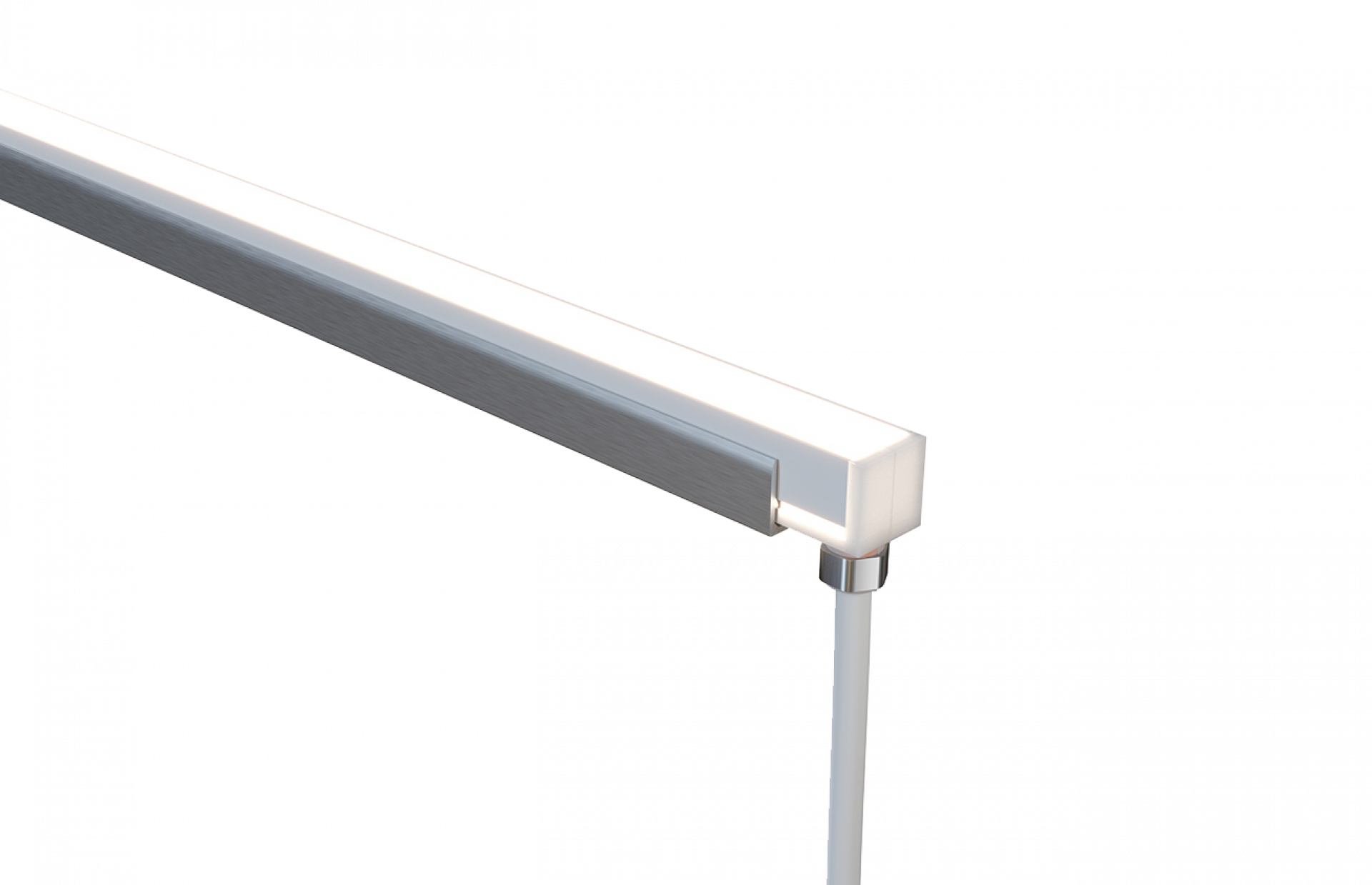

• Bottom Wire Entry

Field Assembly
Wire Entry Options & Components

• Straight Connector

    DI-LIN-TE-STFC

• Side Connector

    DI-LIN-TE-SDFC

• Bottom Connector

    DI-LIN-TE-BFC

• Dead End Cap

    DI-LIN-TE-DEC
