Lucetta is the specification division of Elemental LED
Flexible architectural light that bends in both top and side directions to fit any space. Water resistant with precision light quality and full diffusion for a dotless look. Place long runs of linear light anywhere – including wet locations – with this versatile, elegant linear light.
Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 150+ lumens per foot.
| Make | Voltage | Model | Series | CCT | Run Length | Wire Entry | Channels | Finish | Mounting | Driver |
| DI | 24V | 3D | LIN LIN4 | 24 (2400K) 27 (2700K) 30 (3000K) 35 (3500K) 40 (4000K) | 016 (16ft. spool) 032 (32ft. spool) | STE (Straight Wire Entry) SDE (Side Wire Entry) BE (Bottom Wire Entry) | MTCH (Mounting Channel) SPINE (Spine Channel) | AL (Aluminum) | MC (Mounting Clip) CHN (Mounting Channel) | ELV (Electronic) VLM (Constant Voltage) MAG (MLV) 010 (0-10V) LUT (Lutron) O/O (On /Off) SWX (Switchex) PoE (Power over Ethernet) |
| Make | DI |
| Voltage | 24V |
| Model | 3D |
| Series | LN |
| LN4 |
| CCT | 24 (2400K) |
| 27 (2700K) | |
| 30 (3000K) | |
| 35 (3500K) | |
| 40 (4000K) |
| Run Length | 016 (16ft. spool) |
| 032 (32ft spool) |

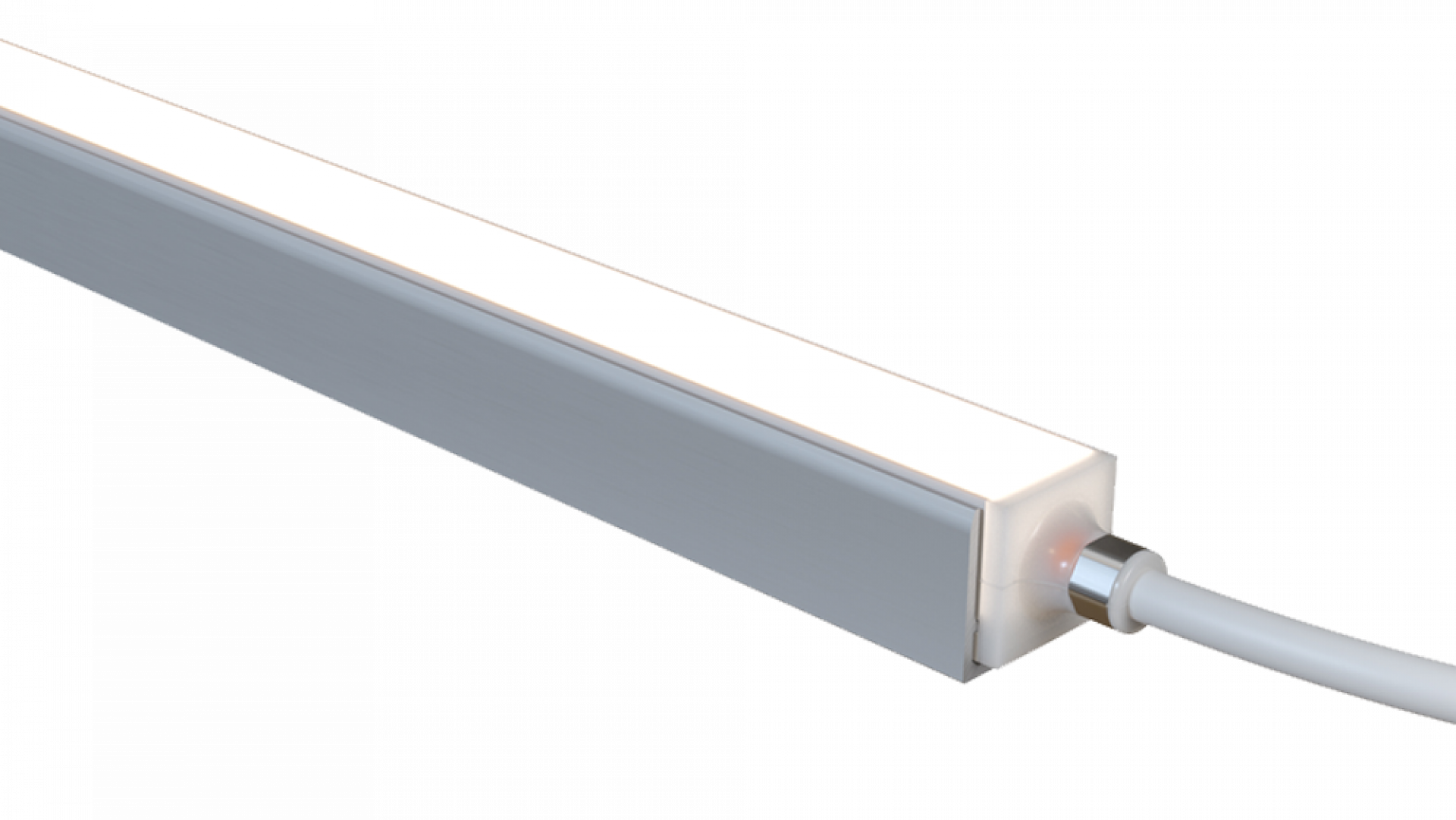

| Wire Entry | STE (Straight Wire Entry) |

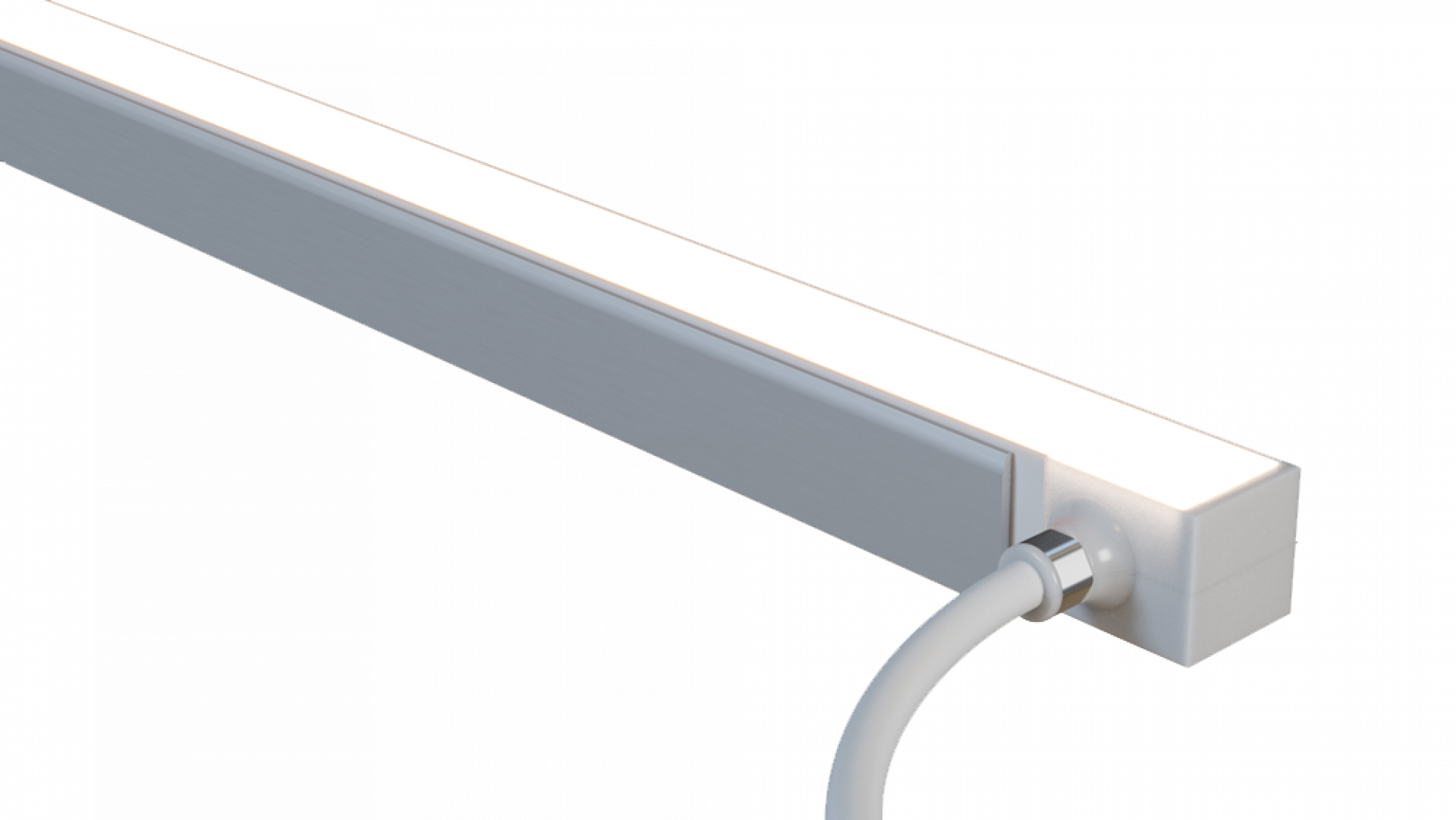

| SDE (Side Wire Entry) | |

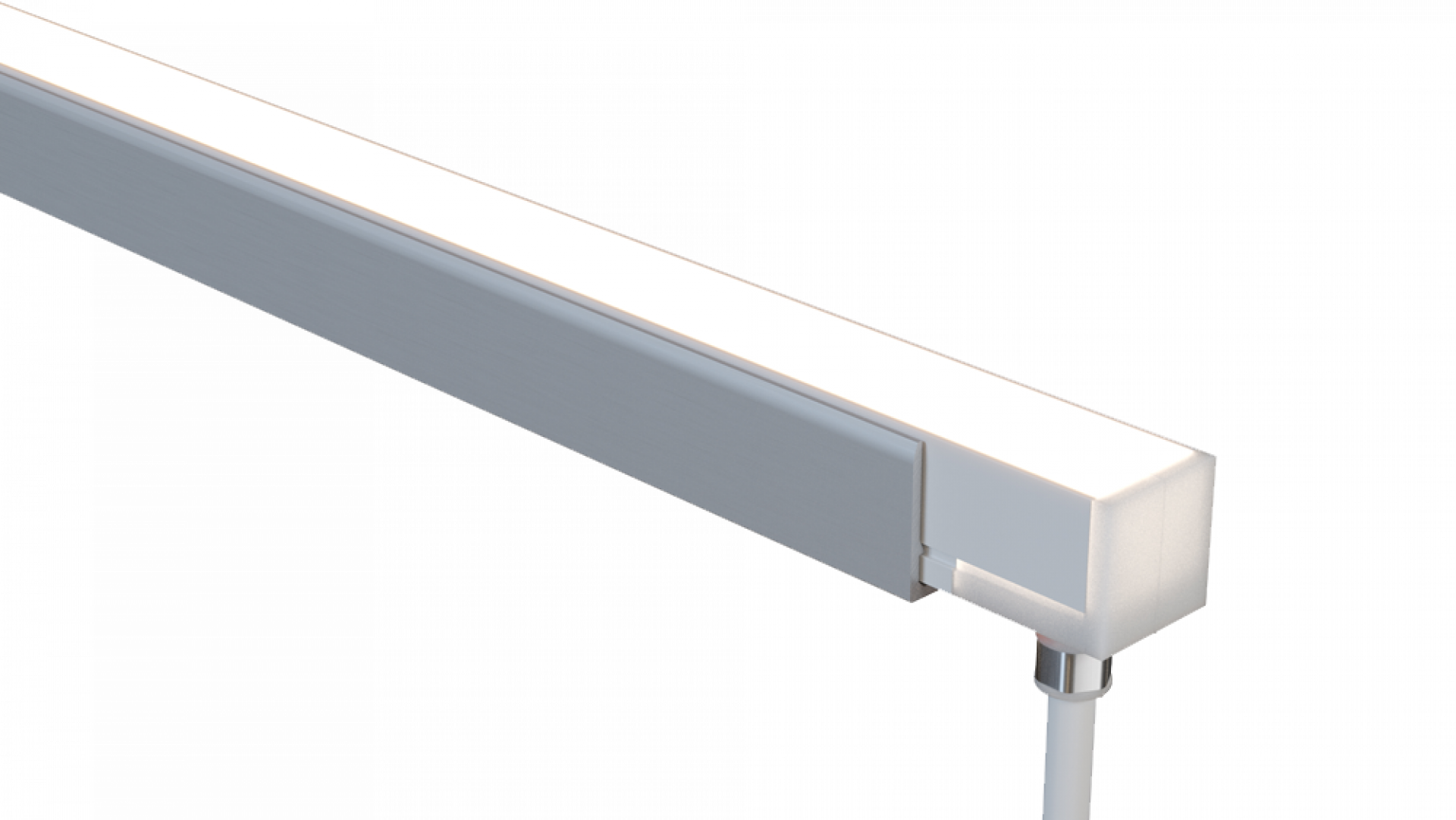

| BE (Bottom Wire Entry) |
| Channels | MTCH (Mounting Channel) |
| SPINE (Spine Channel) |
| Finish | AL (Aluminum) |
| Mounting | MC (Mounting Clip) |
| CHN (Mounting Channel) |
| Driver | ELV (Electronic) |
| VLM (Constant Voltage) | |
| MAG (MLV) | |
| 010 (0-10V) | |
| LUT (Lutron) | |
| O/O (On / Off) | |
| SWX (Switchex) | |
| PoE (Power over Ethernet) |
Learn about voltage drop
DI-LIN-3D-MTCH-39 (39" piece)
DI-LIN-3D-SPINE-39 (39" piece)

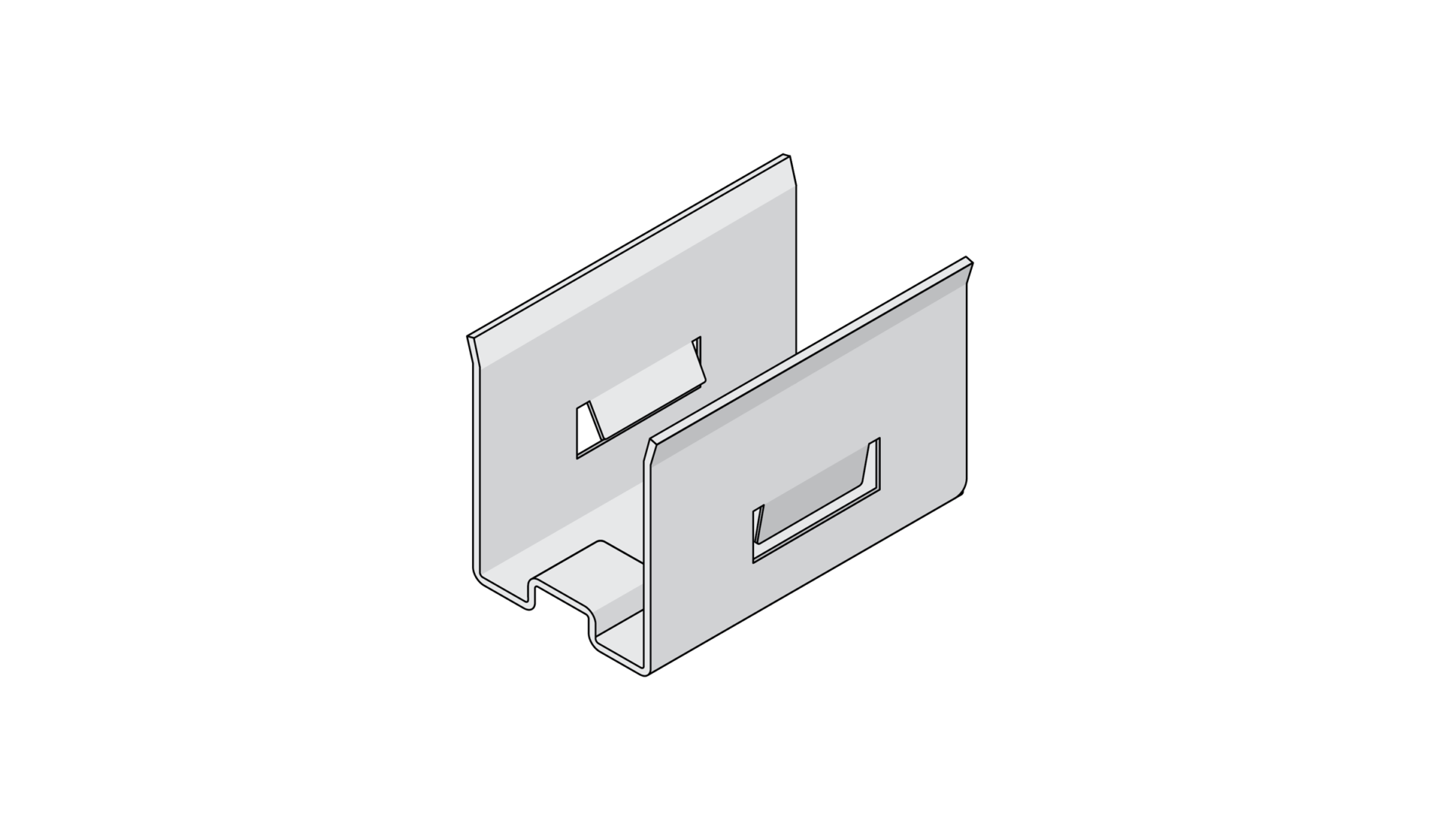

DI-LIN-3DMTCL-2 (2-pack)
DI-LIN-3D-DEC
