Cove Lighting
This essential detail brings beautiful, clear light to rooms of all sizes and purposes. Choose between a very bright tape light (800+ Lm/ft.), a medium-bright tape light (500+ Lm/ft.), or an accent level tape light (150+ or 300+ Lm/ft.) depending if you intend to provide ambient light or simply a decorative glow.

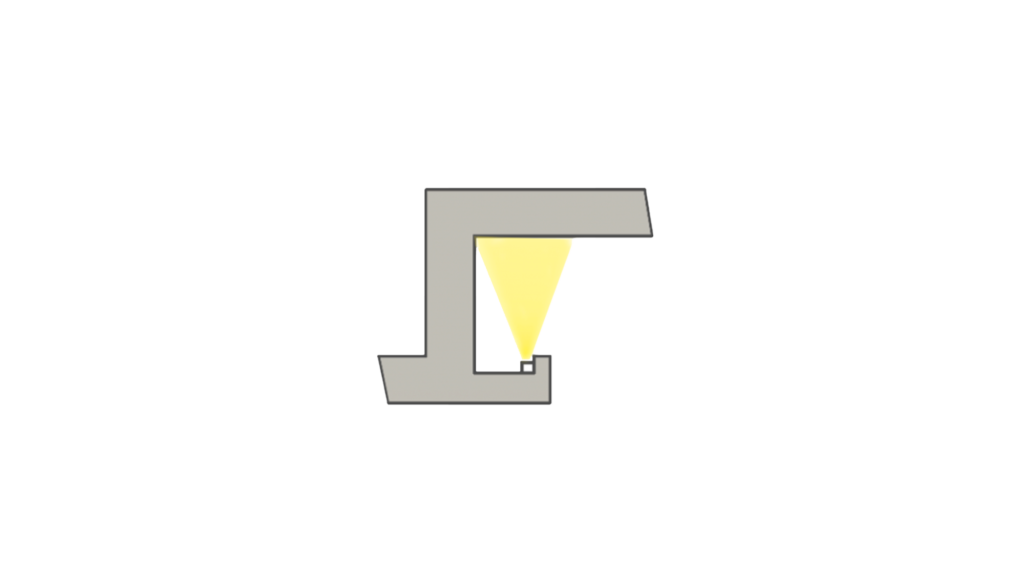

Front mounted
Positioning the linear light towards the front edge of the cove maximizes the light cast onto the ceiling and is typically recommended for accent-level cove lighting.
FARO™ SQUARE Fixture
95+ CRI, 300 Lm/ft., 3000K, Architectural Clear Lens, with Rotating Mounting Clips
OMNIDRIVE® X ELV Dimmable Driver
Center mounted
Positioning the linear light in the middle of the cove balances the light between the ceiling and the cove itself, making it a preferred option for larger and deeper coves.
FARO™ Slim Fixture
95+ CRI, 500 Lm/ft., 3000K, Architectural Clear Lens, with Mounting Clips
OMNIDRIVE® X ELV Dimmable Driver

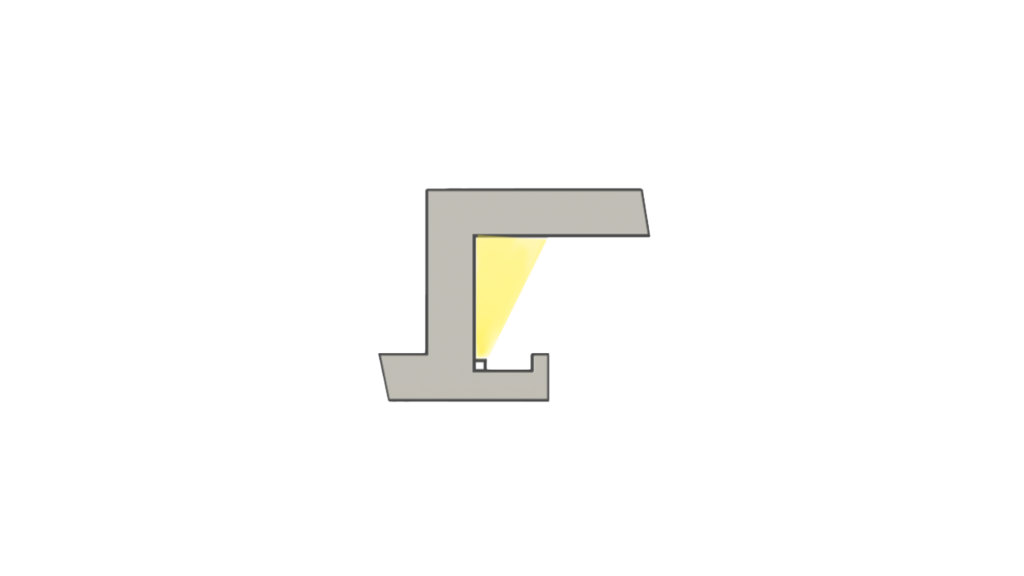

Rear mounted
Positioning the linear light at the rear of the cove, aiming forward at 45 degrees, maximizes light throw onto the ceiling and is the best choice for high-output cove lighting for general illumination. Because the light is bright, it is important that the fixture is not directly visible, which this positioning helps achieve.
FARO™ SQUARE Fixture
95+ CRI, 800 Lm/ft., 3000K, Architectural Clear Lens, with Rotating Mounting Clips
FARO™ 45 Fixture
95+ CRI, 800 Lm/ft., 3000K, Architectural Clear Lens, with Mounting Clips
OMNIDRIVE® X ELV Dimmable Driver

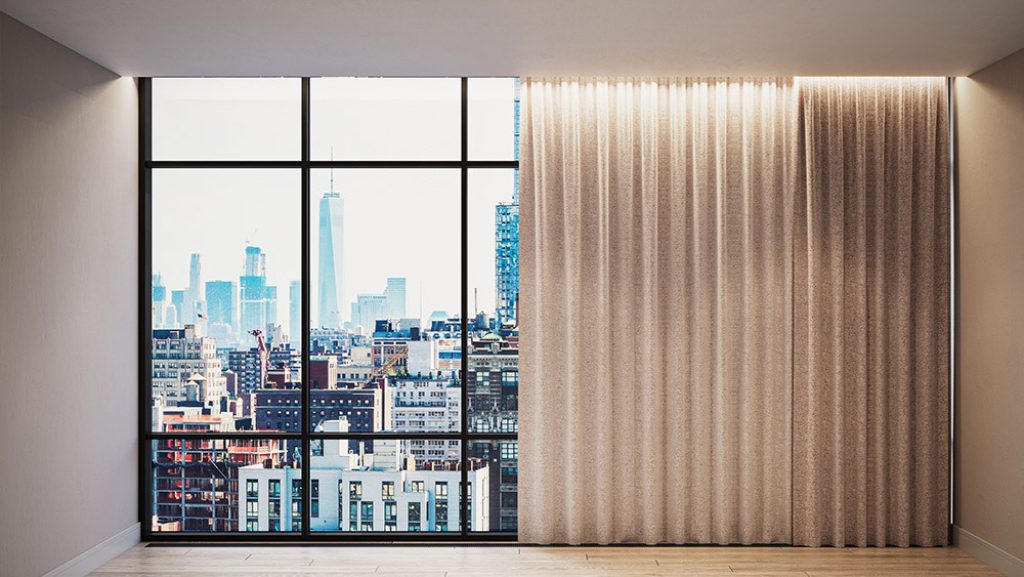

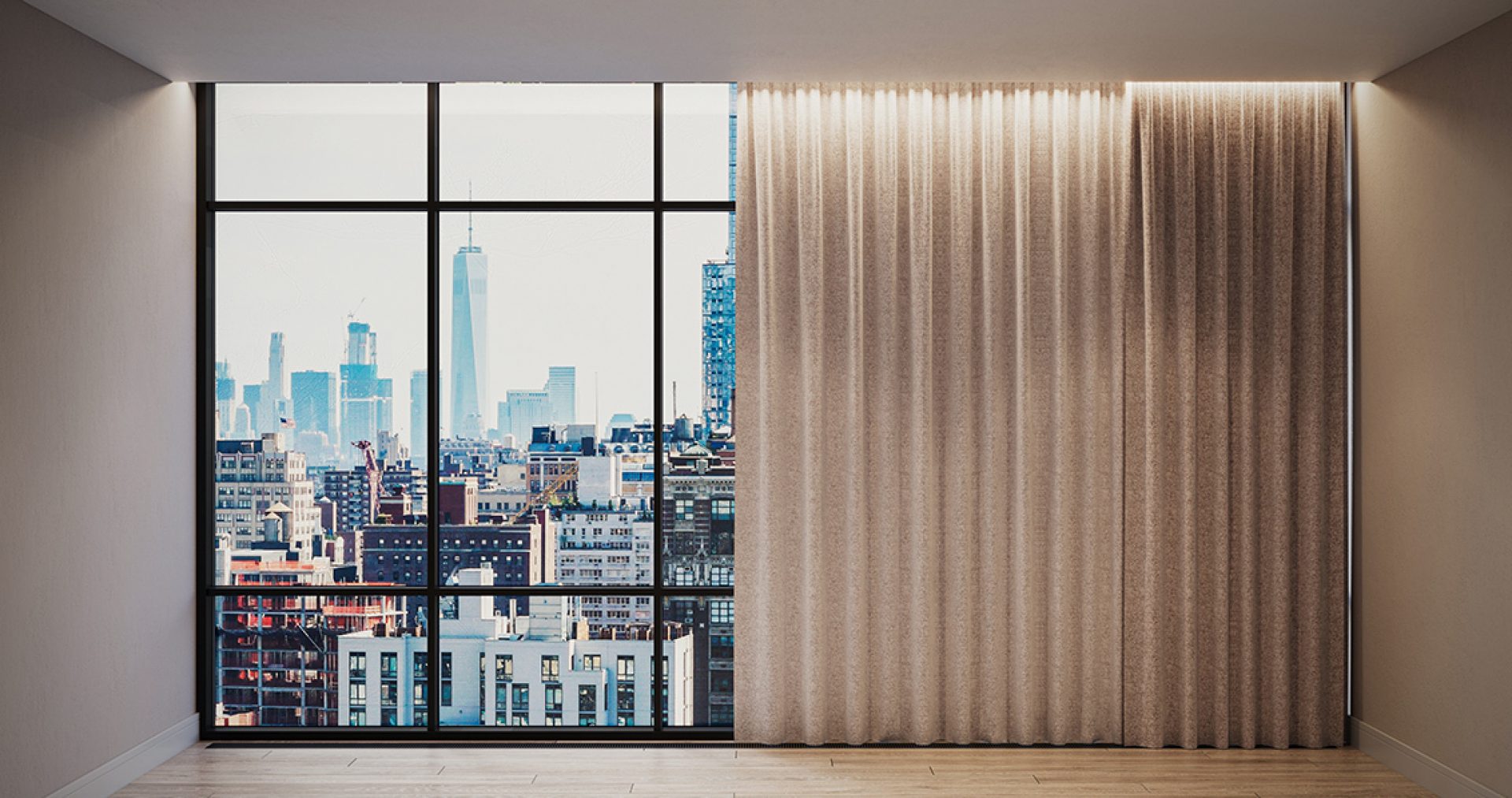

Curtain Lighting
Similar to cove lighting, this curtain lighting detail features a linear light facing down the curtain. Typically, an accent-level (150+ lm/ft or 300+ Lm/ft.) tape light works best.

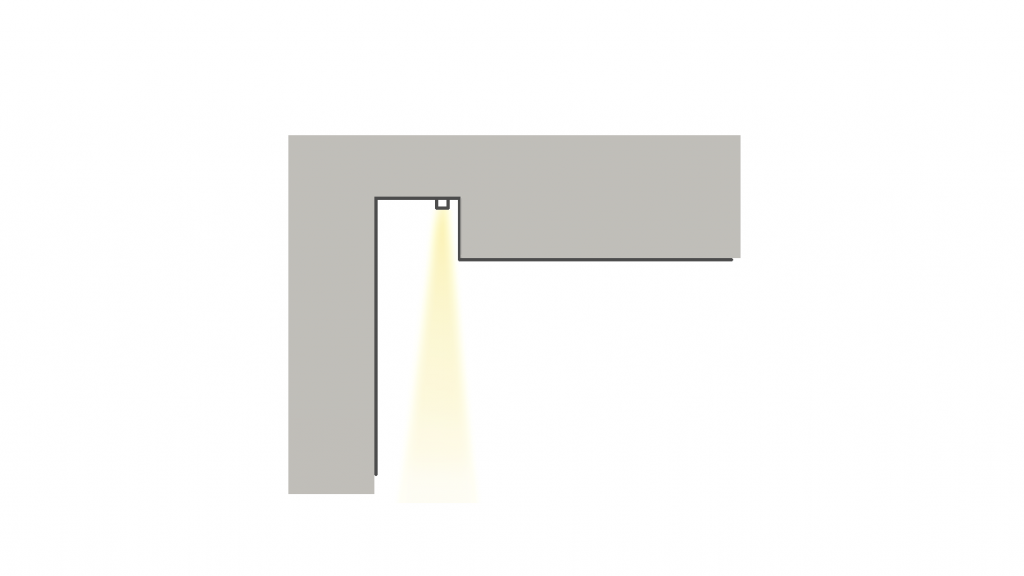

Curtain pocket light
Mount the light facing downwards inside the curtain pocket. Leave at least 1" between the light and the curtain face. The more space between them, the further the light will cast down the curtain. Use a dimmer to ensure a soft nighttime glow rather than a strong strip of light at the top of the curtain.
FARO™ A2 Fixture
95+ CRI, 150 Lm/ft., 3000K, Architectural Frosted Lens, with Mounting Clips
