Vanity Lighting
For a soft yet useful light, surround a vanity with light aiming parallel to the wall and perpendicular to the viewer.

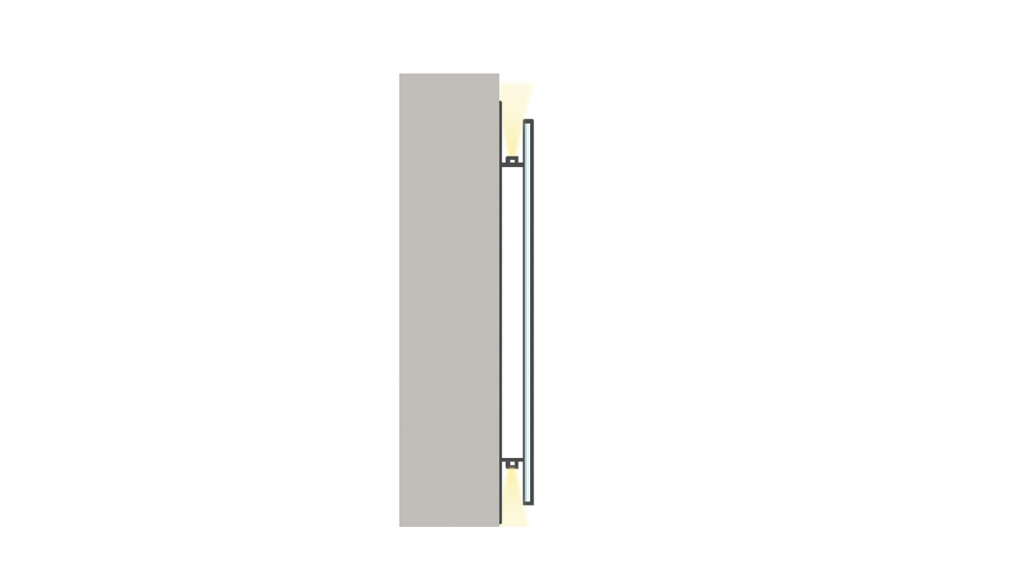

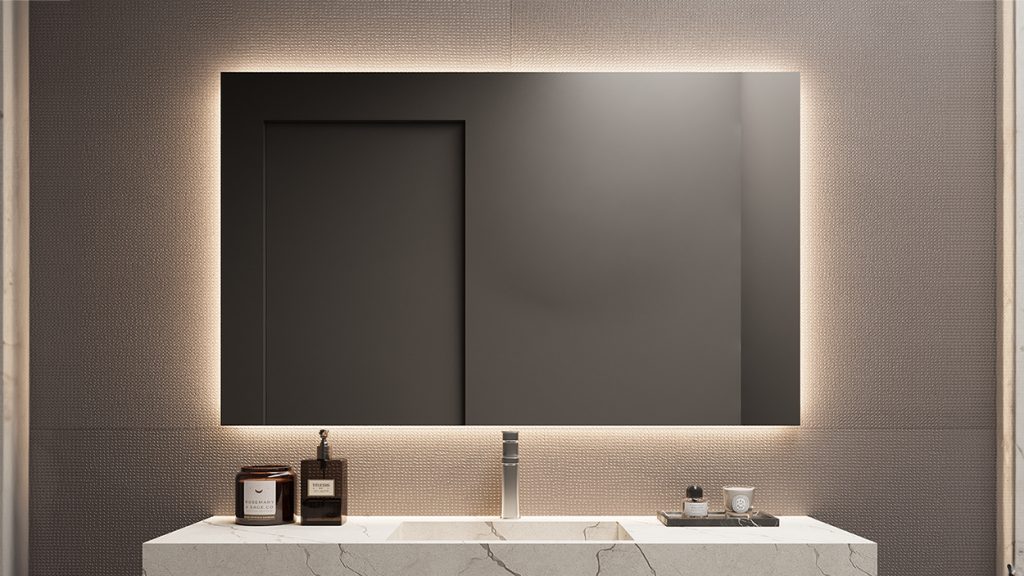

Vanity Surround
For a soft yet useful light, surround a vanity with light aiming parallel to the wall and perpendicular to the viewer. Leave approximately 1" to 3" between the mirror and the wall for optimum spacing and light distribution.
LINAIRE Flex Top Bend
Example: DI-24V-TELIN-3000K-[length]-Side-MTCL-ELV

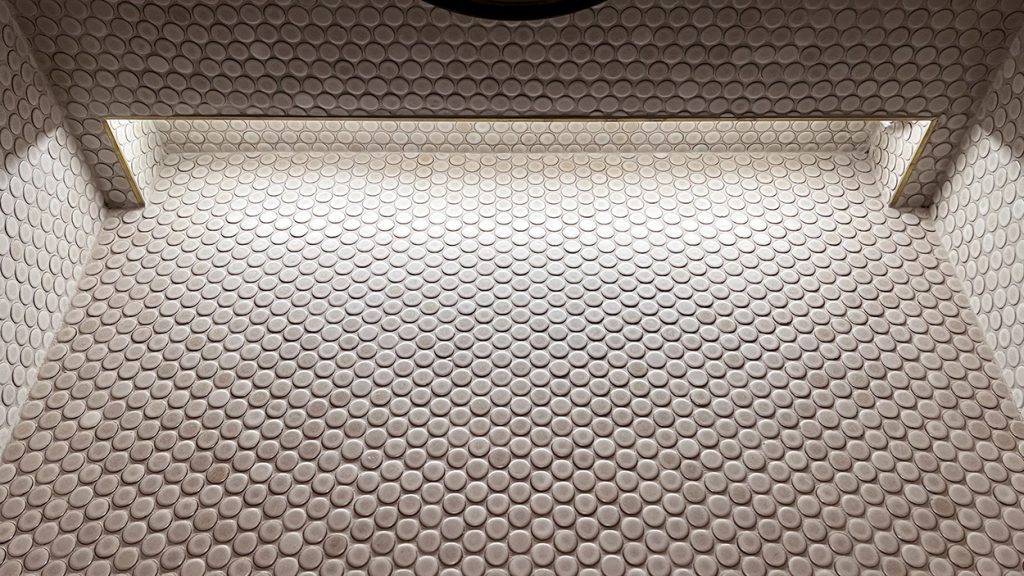

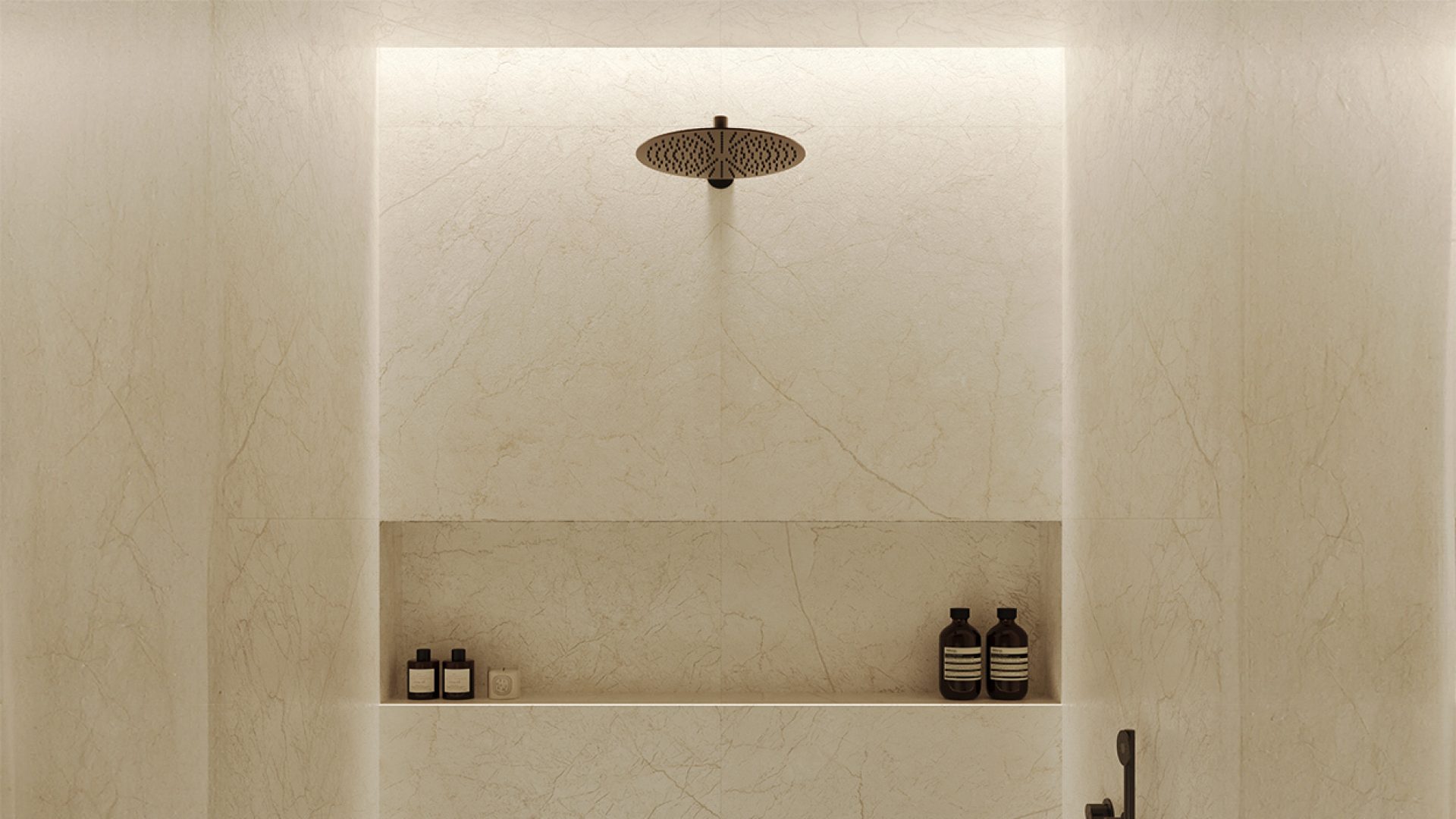

Shower Pocket Lighting
Transform an ordinary shower into a dramatic, welcoming space with this popular indirect lighting detail.
Shower Pocket
Transform an ordinary shower into a dramatic, welcoming space with this popular indirect lighting detail. Combine a high-output waterproof light (400 lm/ft) with a dimmer to fine tune the light output. Build a pocket of approximate 4" by 4" dimensions for optimum light distribution.
ENCAPSULATED Linear Light
Example: VIP-24V-TE-ENC-400-3000K-[length]-MTCH-ELV

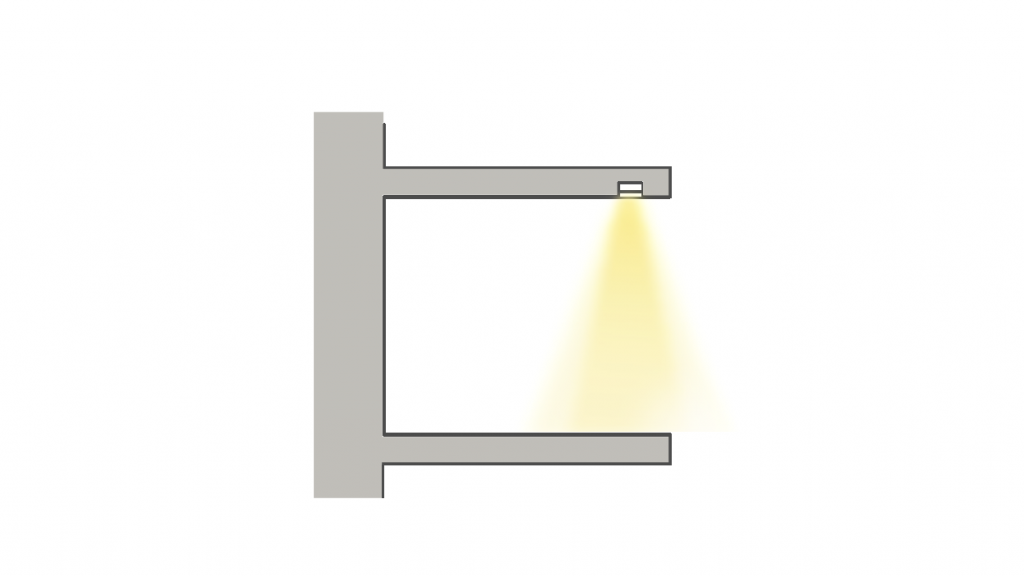

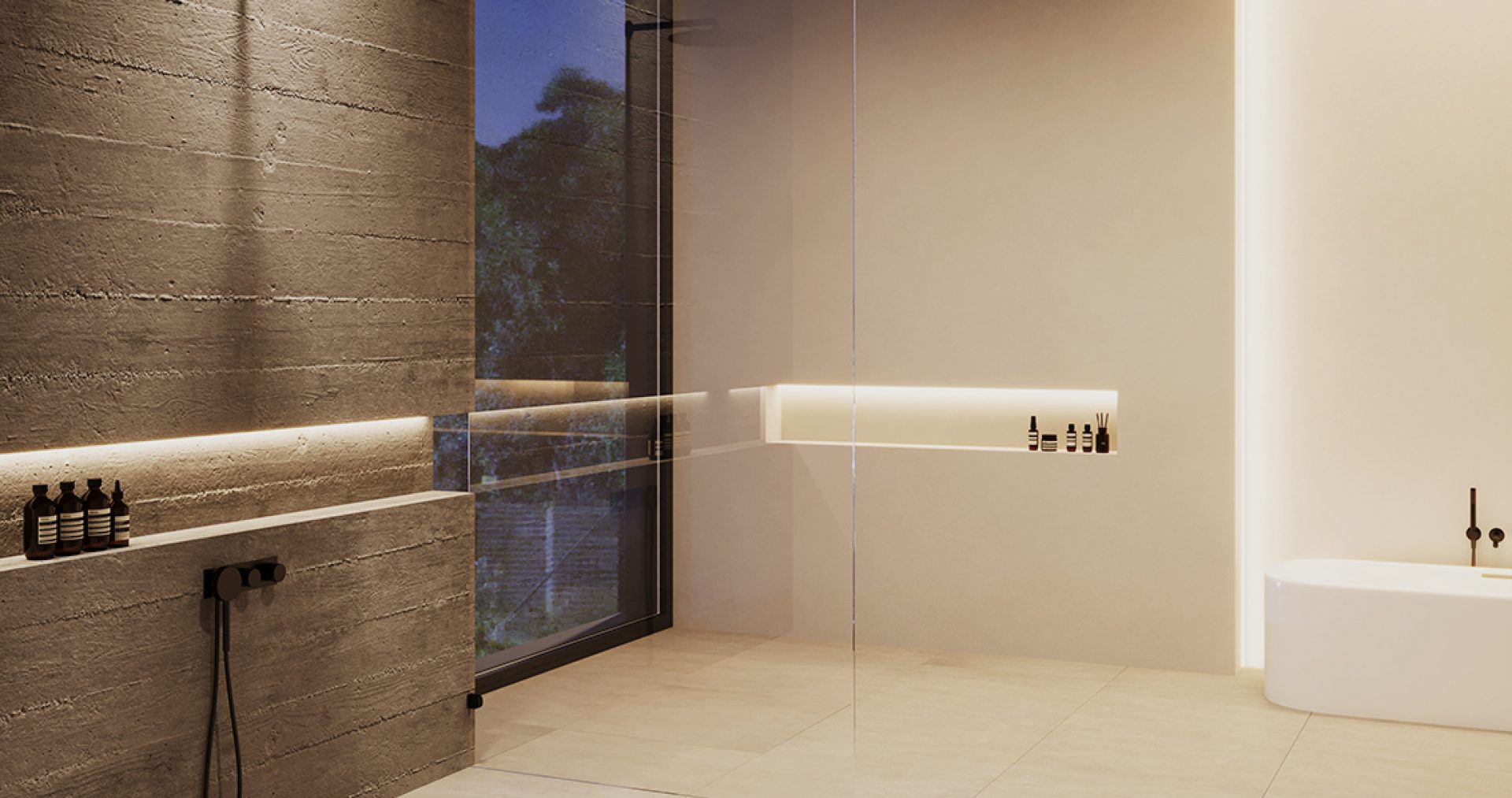

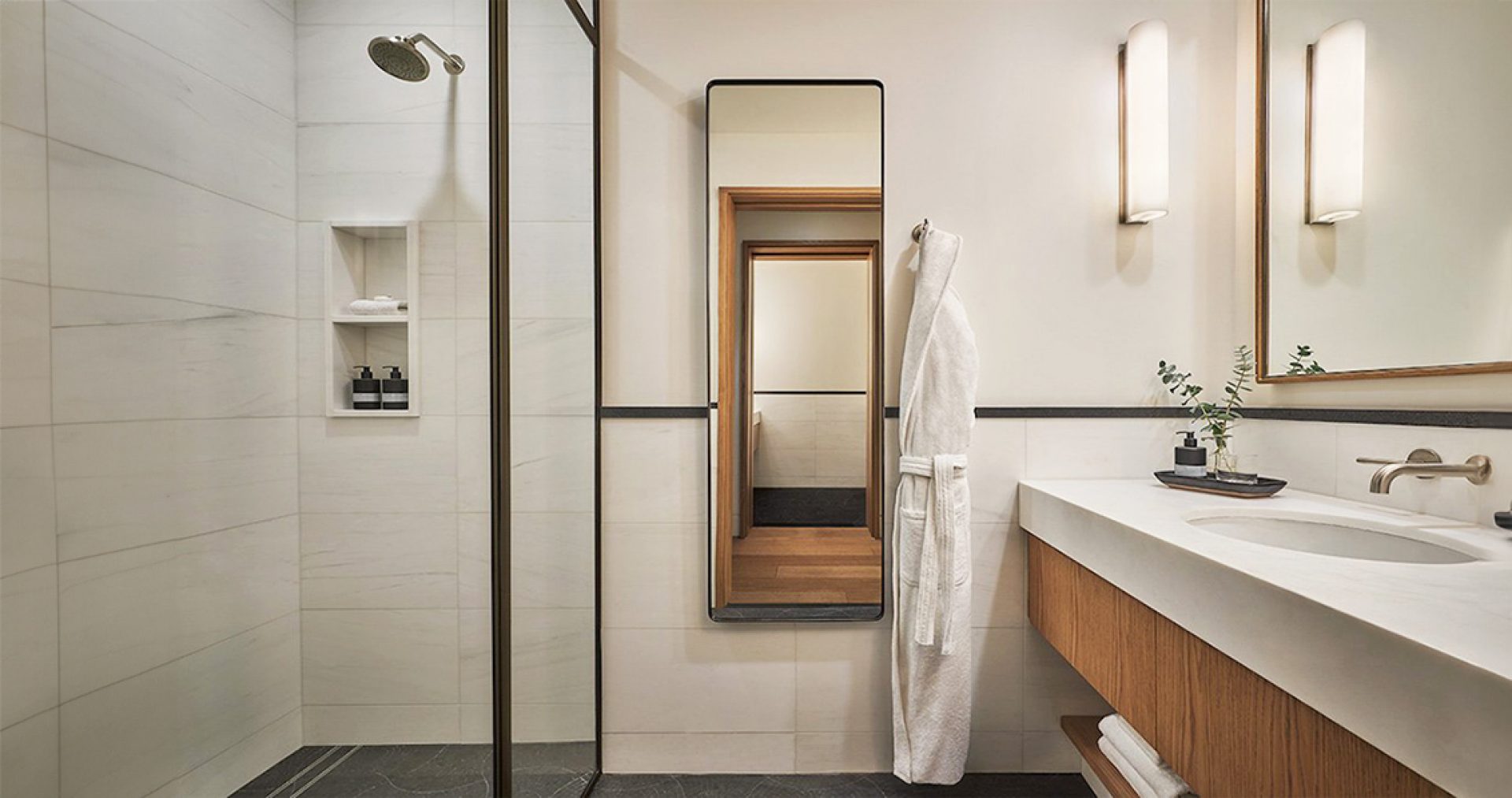

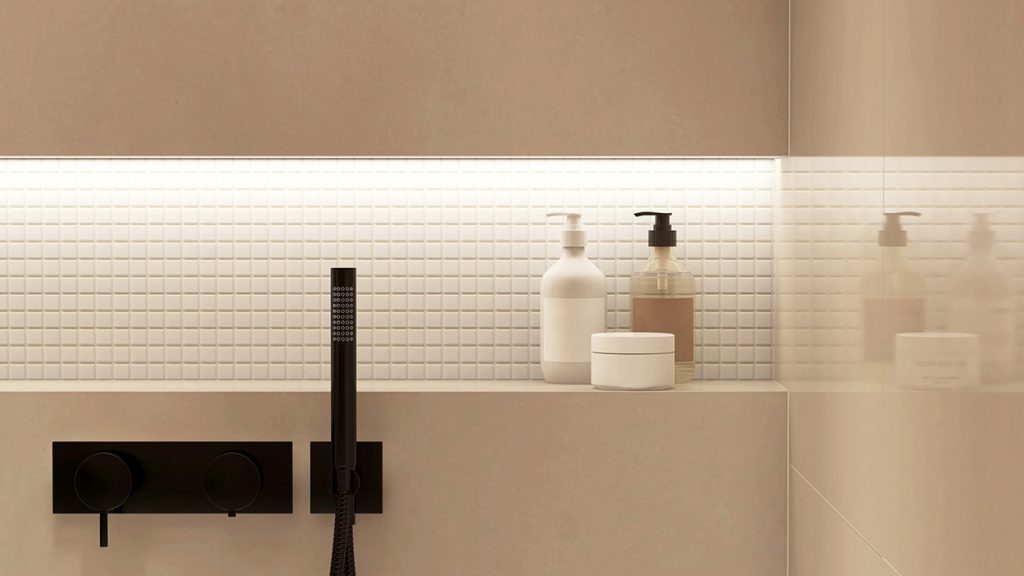

Wet Location Accent Lighting
Niches in showers or elsewhere in the bathroom can become features, similar to the way linear lighting makes millwork a central focus in other rooms.
Indirect Accent Lighting
Niches in showers or elsewhere in the bathroom can become features, similar to the way linear lighting makes millwork a central focus in other rooms. Use accent-level wet location linear light (130+ lm/ft) and recess it directly into the stonework or tilework for the best effect.
ENCAPSULATED Linear Light
Example: VIP-24V-TE-ENC-130-3000K-[length]-ELV
