A2 Channel

Sturdy profile with many mounting options. Includes all components for assembly.

Lens Options:

Architectural Clear: Lightly textured lens for maximum light output & reduced glare
Architectural Frosted: Frosted, lightly textured lens for diffusion
Architectural Frosted Satin: Frosted, lightly textured lens for reduced glare and maximum diffusion
Roll On: Diffused lens with a flexible roll format for long and continuous runs (Not BAA and BABA compliant.)

Features & Benefits

Optimized for long runs and tight spaces
Precise flush mounting with concealed clips and wire raceway
Architectural-grade polycarbonate lens
Low glare and minimal color shift
Buy American Act (BAA) and Build America, Buy America (BABA) compliant.
Patented design

Spec Sheet FARO™ A2

• 5 Year Limited Warranty

• Closet rated with all tape light

SKU Builder

Make	Model	Series	Lens	Length
VIP	CHB	A2	AFS (Arch. Frosted Satin Lens) CLT (Arch. Clear Lens) FRT (Arch. Frosted Lens)	48 (48in. Aluminum) 48B (48in. Black) 48W (48in. White) 90 (96in. Aluminum) 90B (96in. Black) 90W (96in. White)

Make

VIP

Model

CHB

Series

Lens	AFS (Arch. Frosted Satin Lens)
	CLT (Arch. Clear Lens)
	FRT (Arch. Frosted Lens)

Length	48 (48in. Aluminum)
	48B (48in. Black)
	48W (48in. White)
	90 (96in. Aluminum)
	90B (96in. Black)
	90W (96in. White)

Learn about voltage drop

Mounting Options

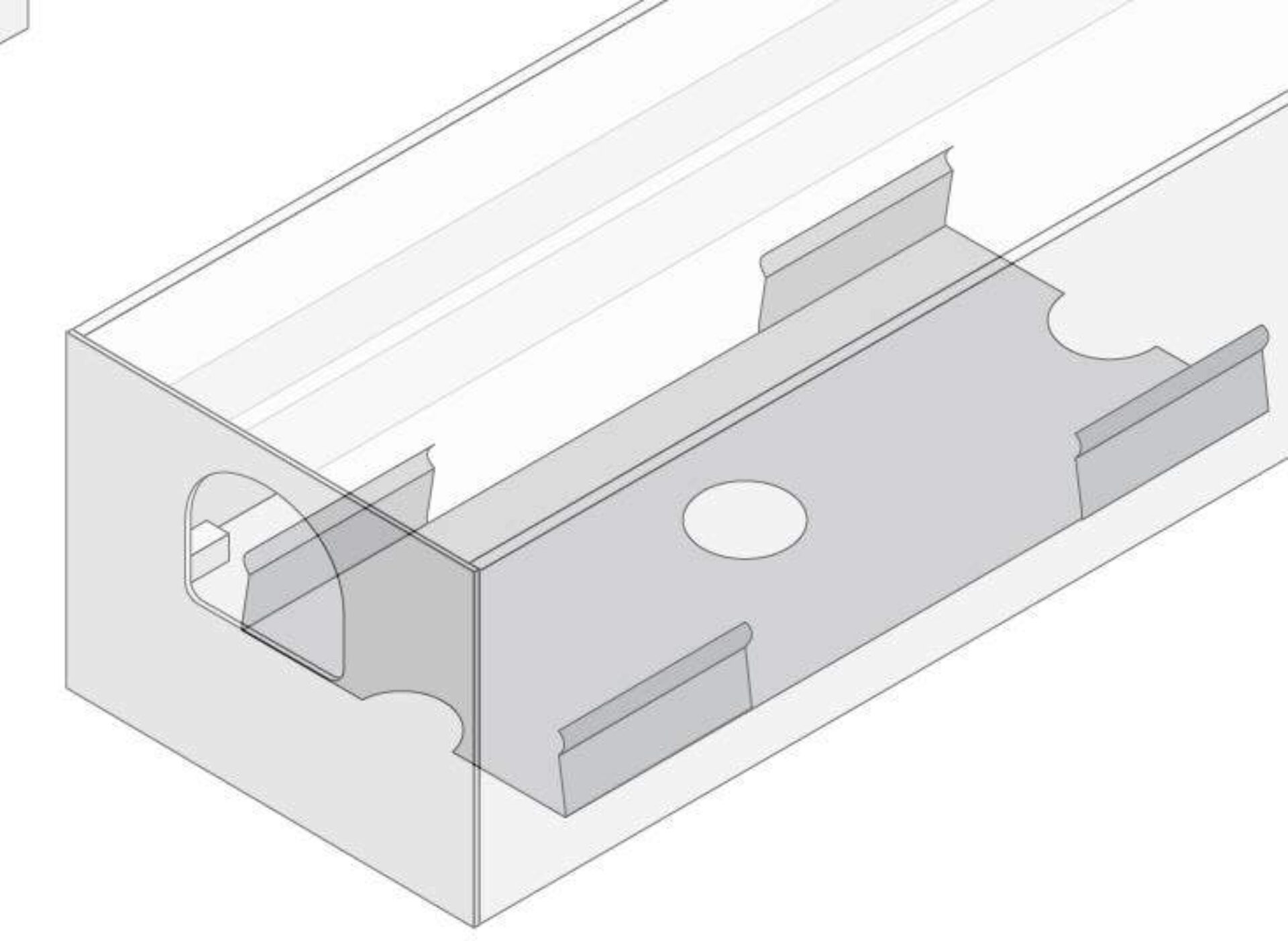

• Mounting Clip

0.56 x 0.64 in. (H x W)

Accessories

• Roll On Lens

16.4 ft. Roll or 65.5 ft. Roll
