Millwork Lighting: Horizontal

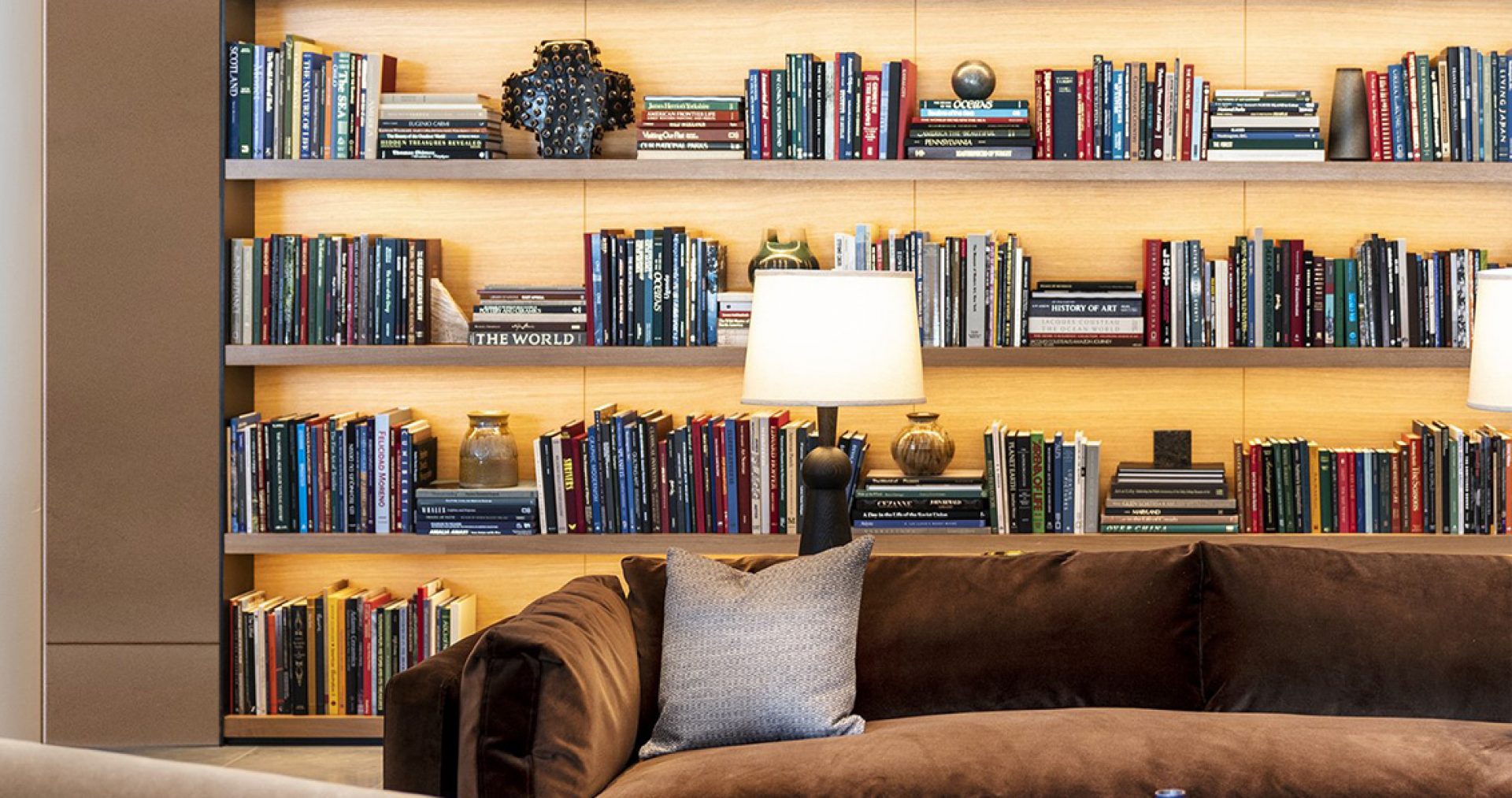

This classic millwork detail is the default for lighting bookshelves, kitchen cabinets, glassware, and more. Combine accent-level tape light (150 lm/ft) with a dimmer.

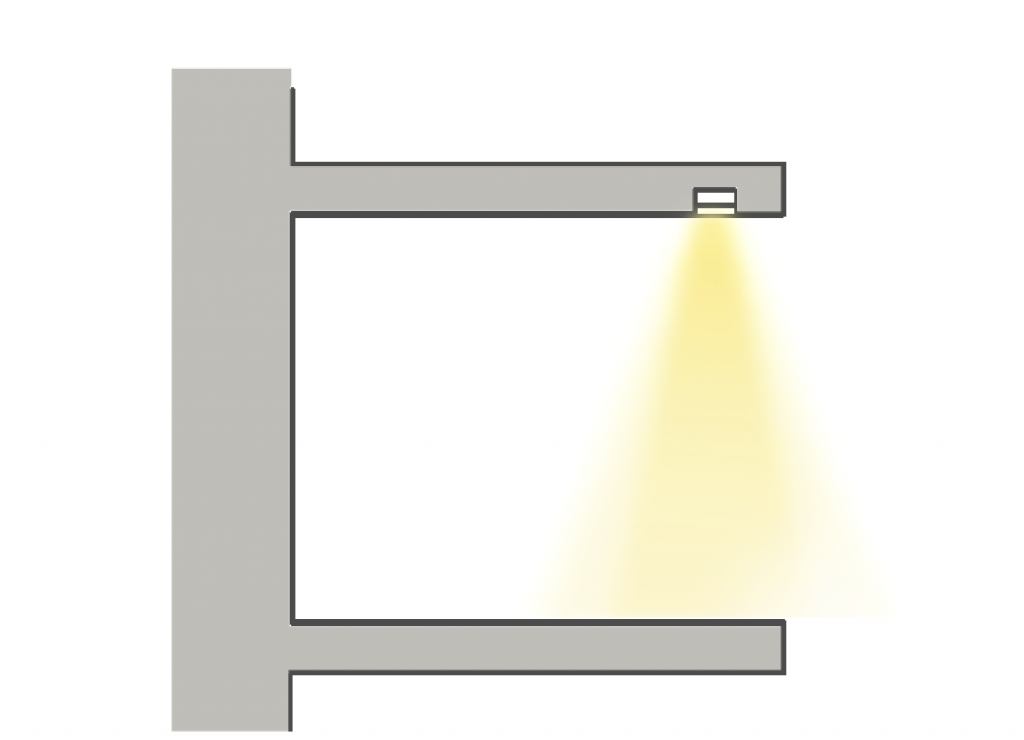

Front mounted:
Mount the light at the front of the upper shelf, aiming down. Either recess the light into the shelf, and/or build a small valence to conceal the light further and prevent glare. Leave grooves or slots for wire management for the wires leading into and/or out of the fixtures.
FARO™ A3 Fixture
95+ CRI, 150 Lm/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

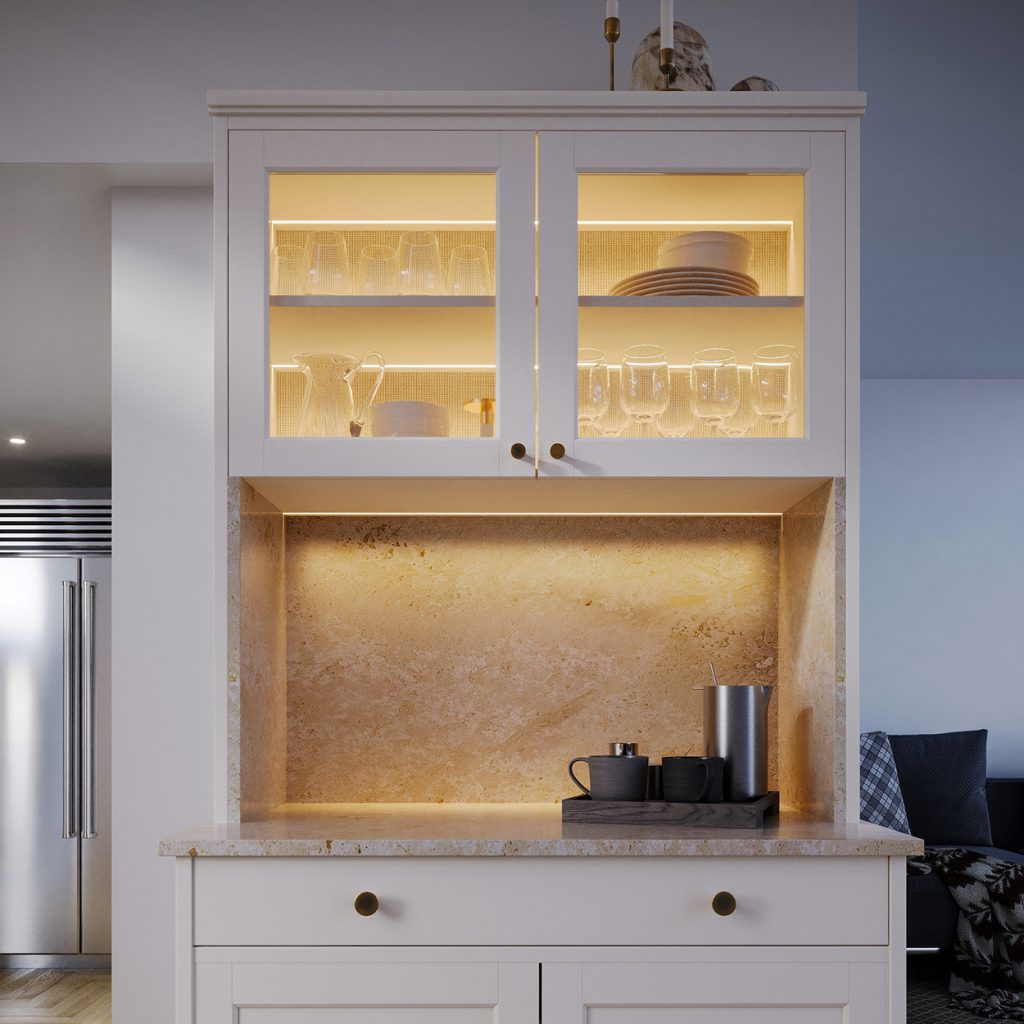

Rear mounted:
Positioning the light at the wall emphasizes the backsplash. This is primarily a decorative effect, yet still delivers light to the work surfaces. The channel should be embedded into the upper shelf, or even recessed further to create a small pocket between the backsplash and the cabinet.
FARO™ A3 Fixture
95+ CRI, 150 Lm/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

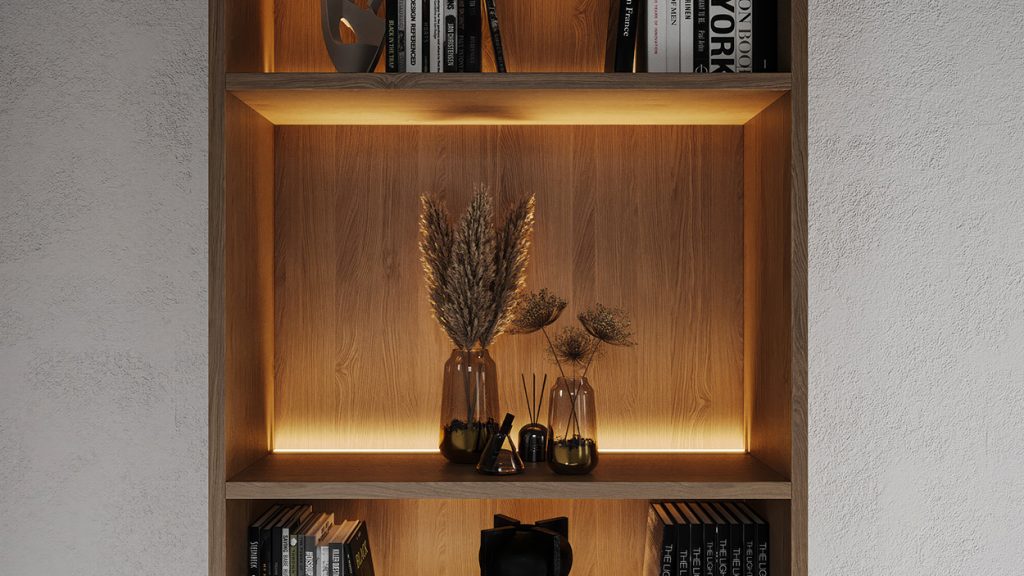

Millwork Lighting: Upward
Highlighting the shelving contents from behind is an unusual detail that works particularly well with glass and other reflective items on display. For a subtle effect, use an accent-level light (150+ Lm/ft.).
Rear mounted facing up:
Recess the light into the rear of the shelf, aiming up. These backlit objects highlight the backsplash and limit the amount of light projected directly at the viewer.
FARO™ A3 Fixture
95+ CRI, 150 Lm/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

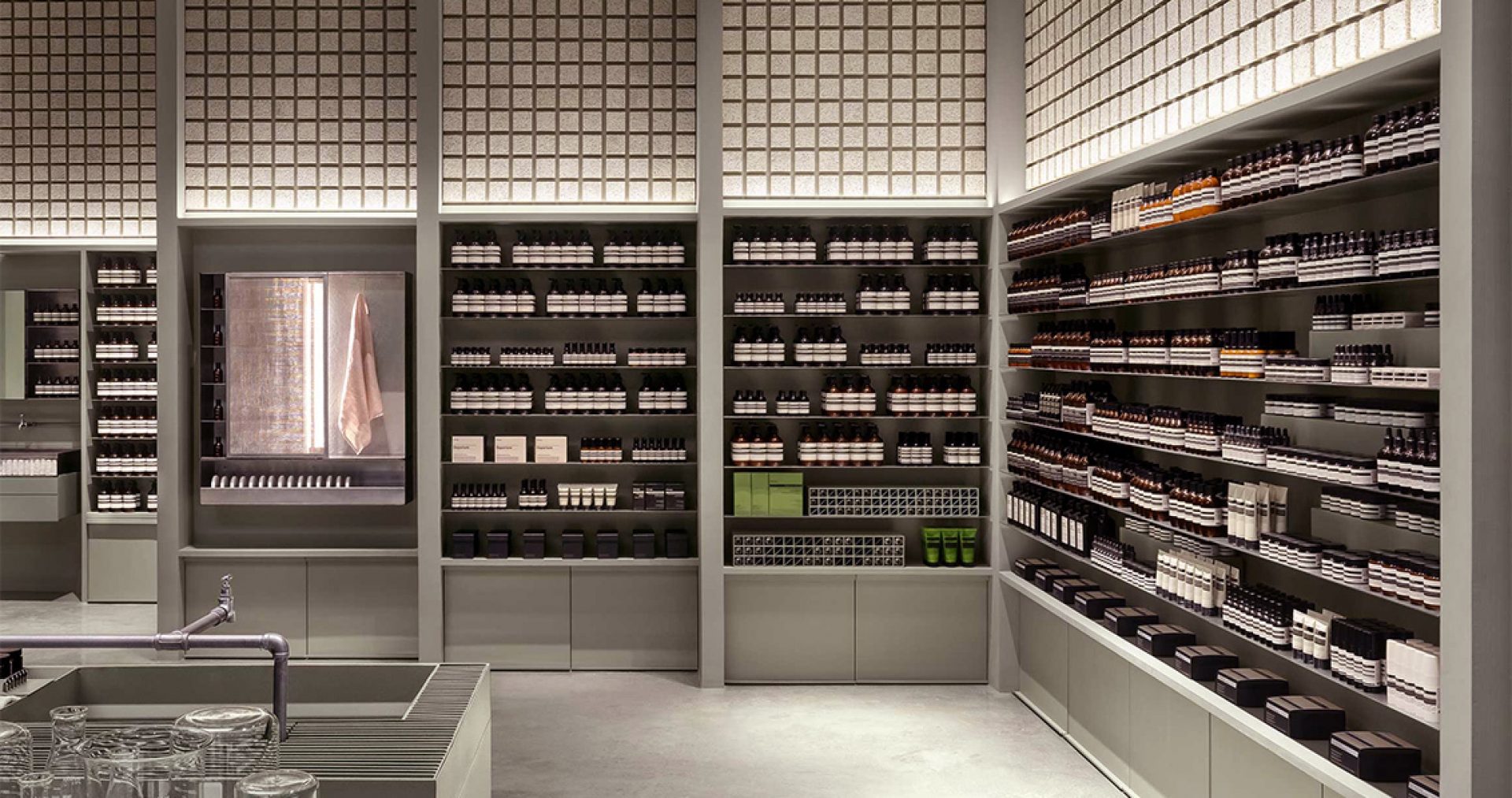

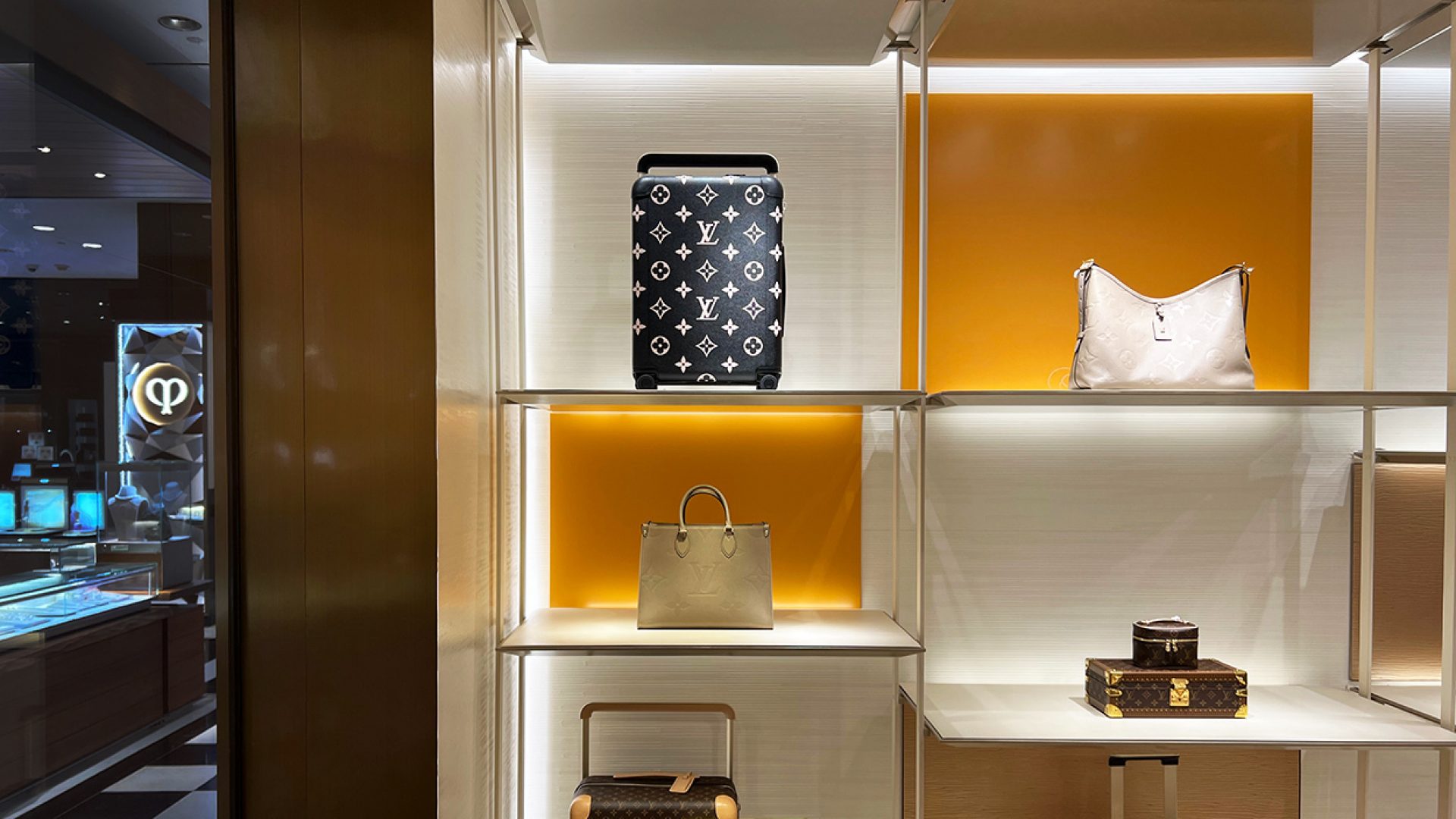

Display Lighting
There are countless ways to light shelving. Focus on maximum light quality with CELESTE, and choose high light output to make products pop and bring attention where you need it.

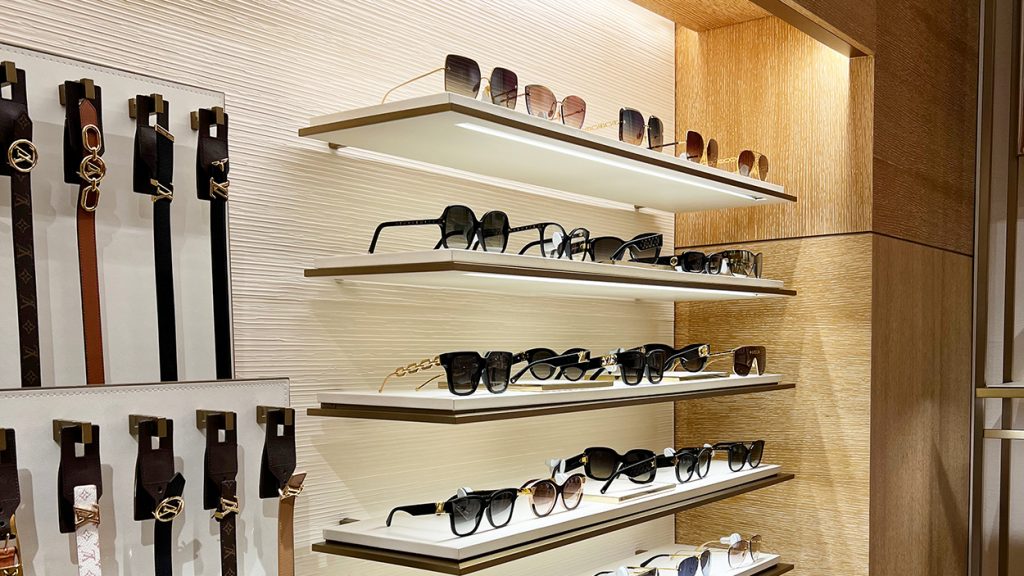

Display Shelving:
Select high-quality light and high output (600+ lm/ft) to emphasize products on display. Contact us for detailed assistance with applications.
FARO™ A2 Fixture
95+ CRI, 300 Lm/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver
